DICE™ (DM) Dosing Module Selector

Enter the 3 main parameters of your application to get a suggested DICE™ DM Dosing Module.

1 9

SELECT YOUR PARAMETERS

List Price

$3,572.00 USD
$3,572.00 USD
Sale Sold out

Model number and components

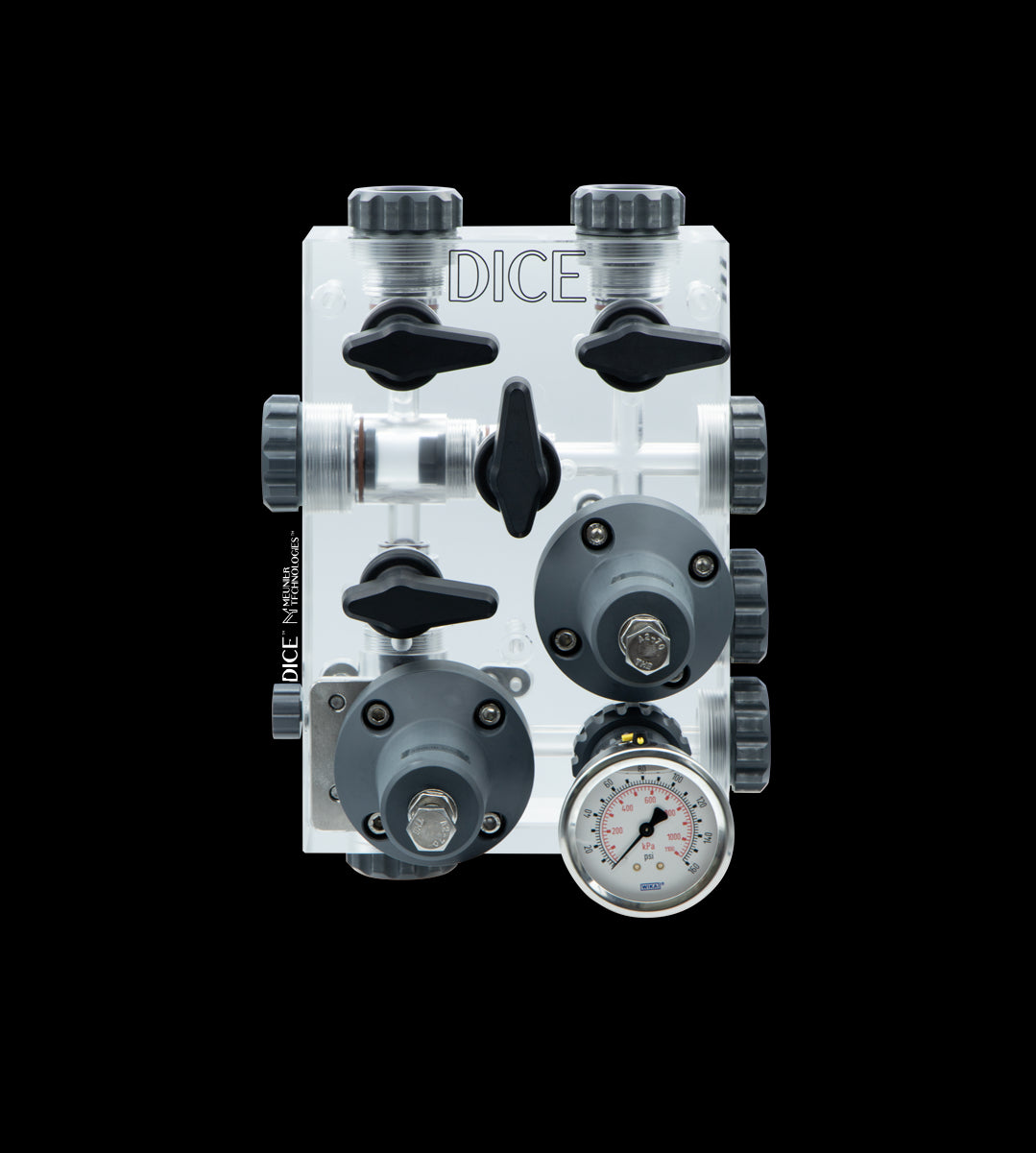

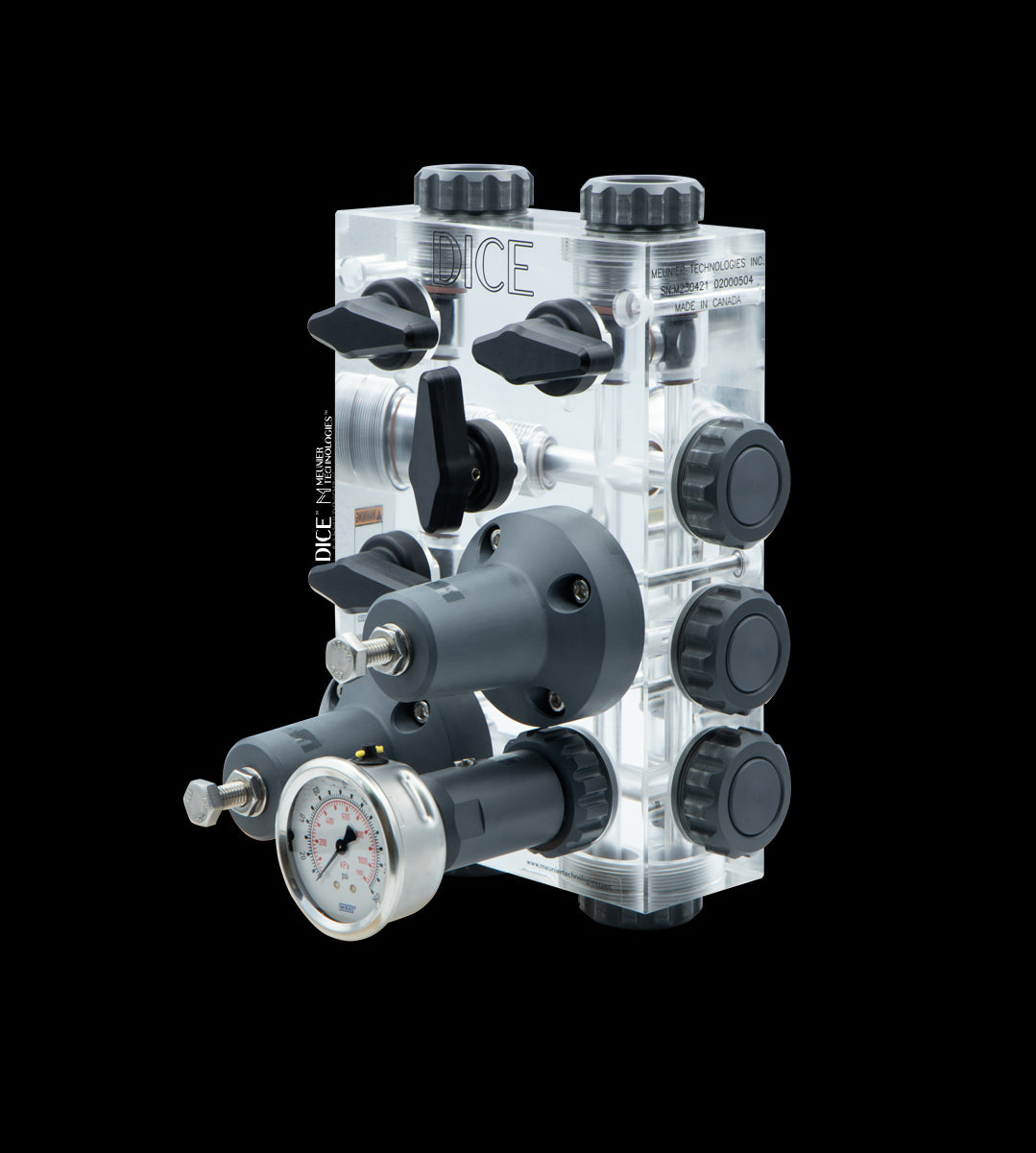

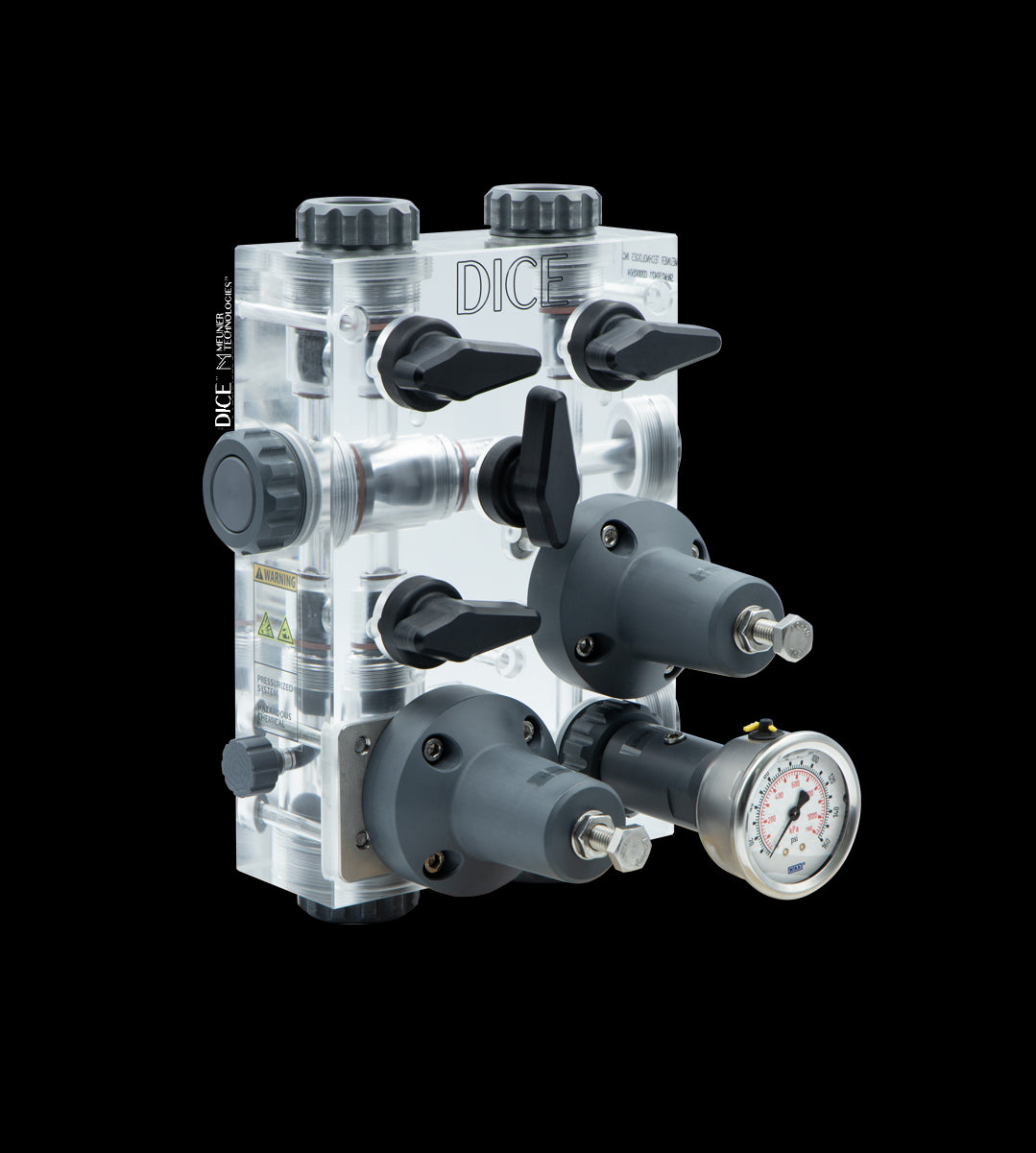

DIM21-MVII-1111144Z4-OEC | DICE DM 1/2" 150 PSI Acrylic (PMMA) PVC Viton/FKM 5x 1/2" NPT male, 3x cap, 1x isolator & pressure, 1 extra cap
Need help? Contact us!

SEE FULL CATALOG

Images are for reference only. They do not represent all possible configurations and materials.

View full details

Integrated components

  • Inlet/outlet ball valves
  • Calibration column ball valve
  • Drainage ball valve
  • Auxiliary ports:
    Pulsation dampeners/washing port/dilution water/secondary pumps
  • Adjustable back pressure valve
  • Adjustable pressure relief valve
  • Pressure gauge with isolator
    Bleed valve

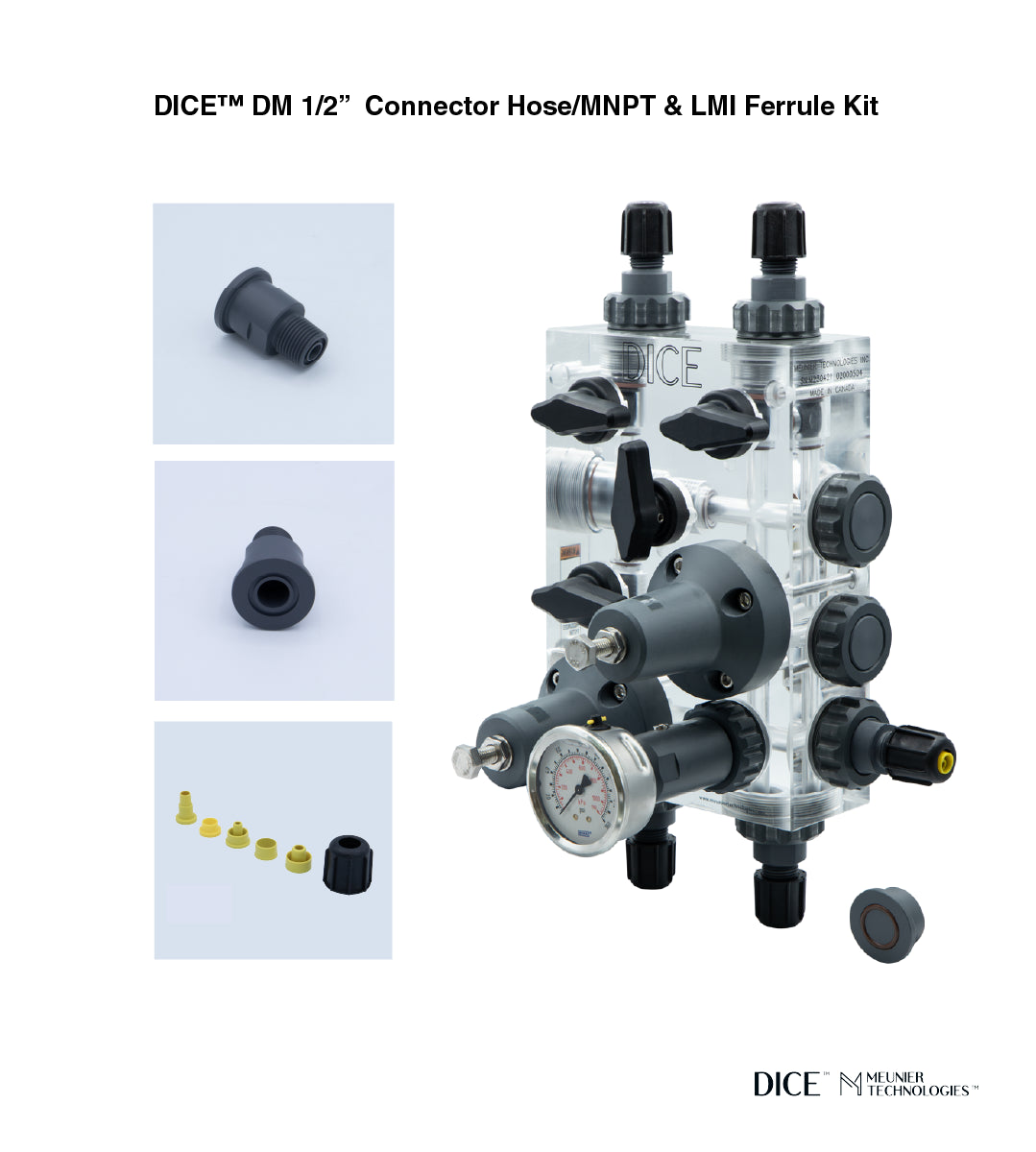

  • LMI Ferrule kit FK21 (with DICE DM 1/2'' only)

FAT Test

  • Rigourously tested per Meunier Technologies Inc. FAT test protocol.

Shipped fully assembled

For both suction lift and flooded suction applications

Size & flow

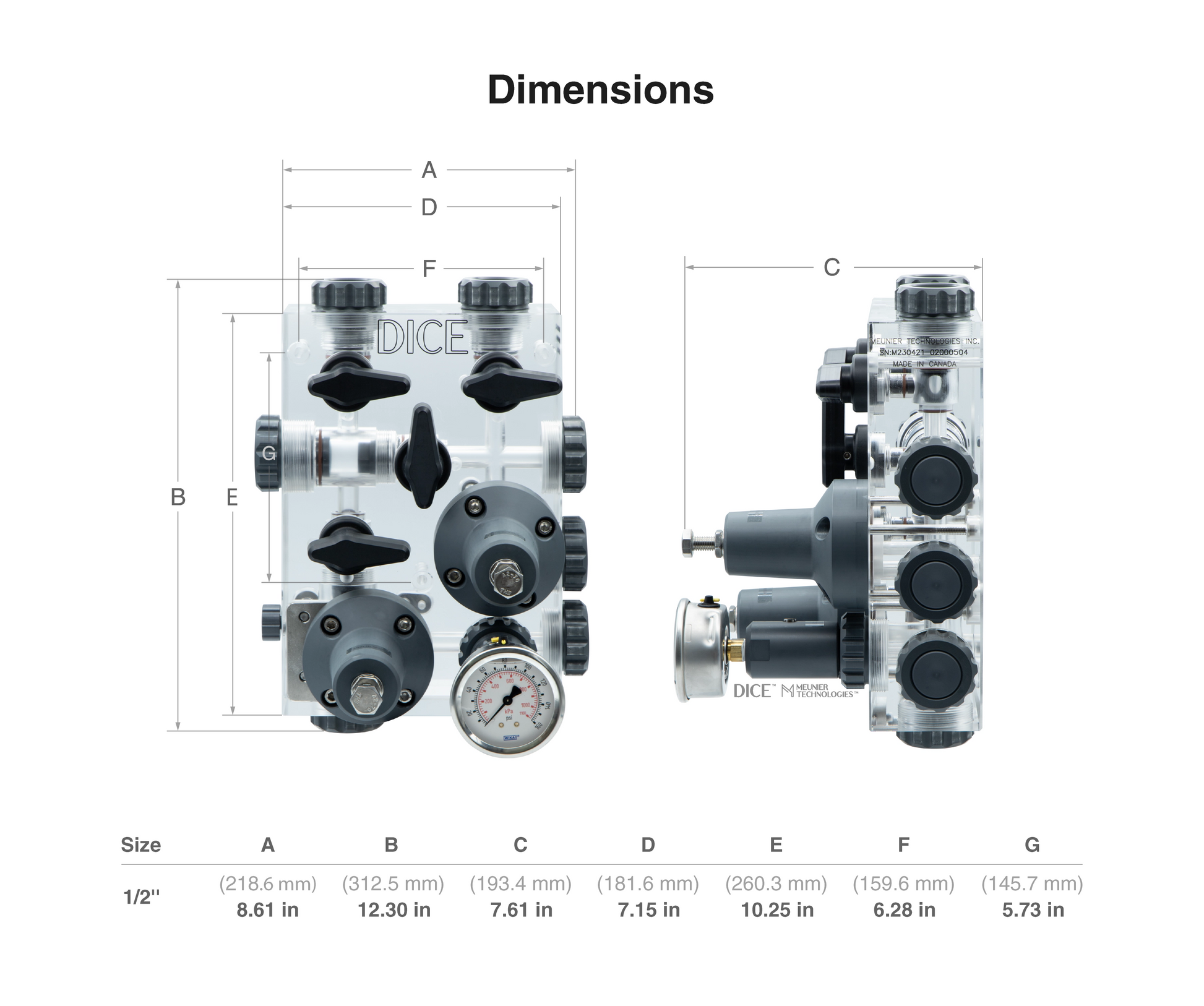

1/2''

  • ≤ 60LPH (16GPH) Simplex
  • ≤ 30LPH (8GPH) Duplex

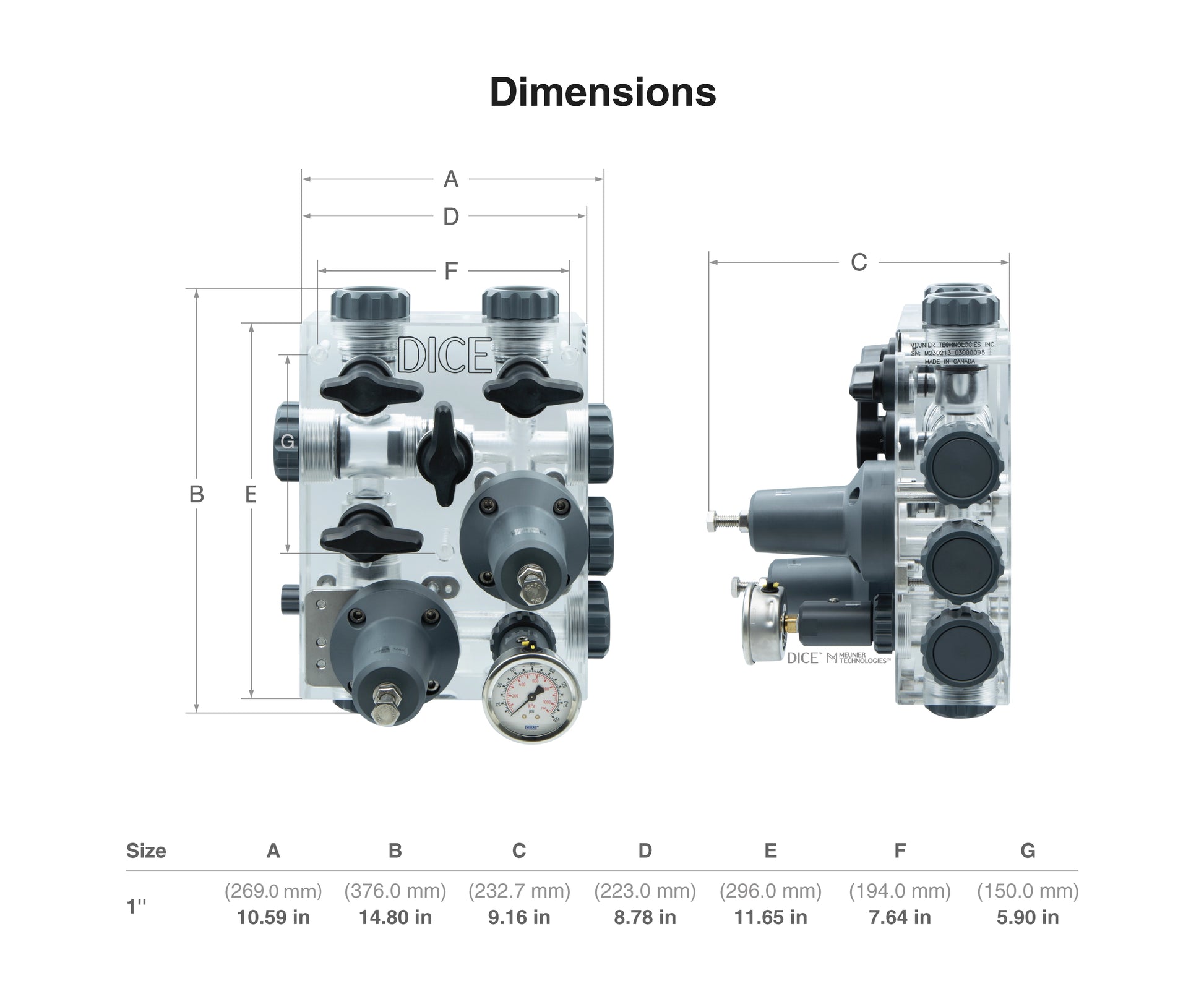

1''

  • ≤ 1000 LPH (265 GPH) Simplex
  • ≤ 500 LPH (132 GPH) Duplex

Pressure range

0-150 PSI

0-250 PSI

Material options

  • ACRYLIC, PVC, FKM/VITON
  • ACRYLIC, PVC, EPDM
  • PVDF, PVDF, FKM/VITON
  • PVDF, PVDF, EPDM

    CPVC and NON-PVC are also available upon request.

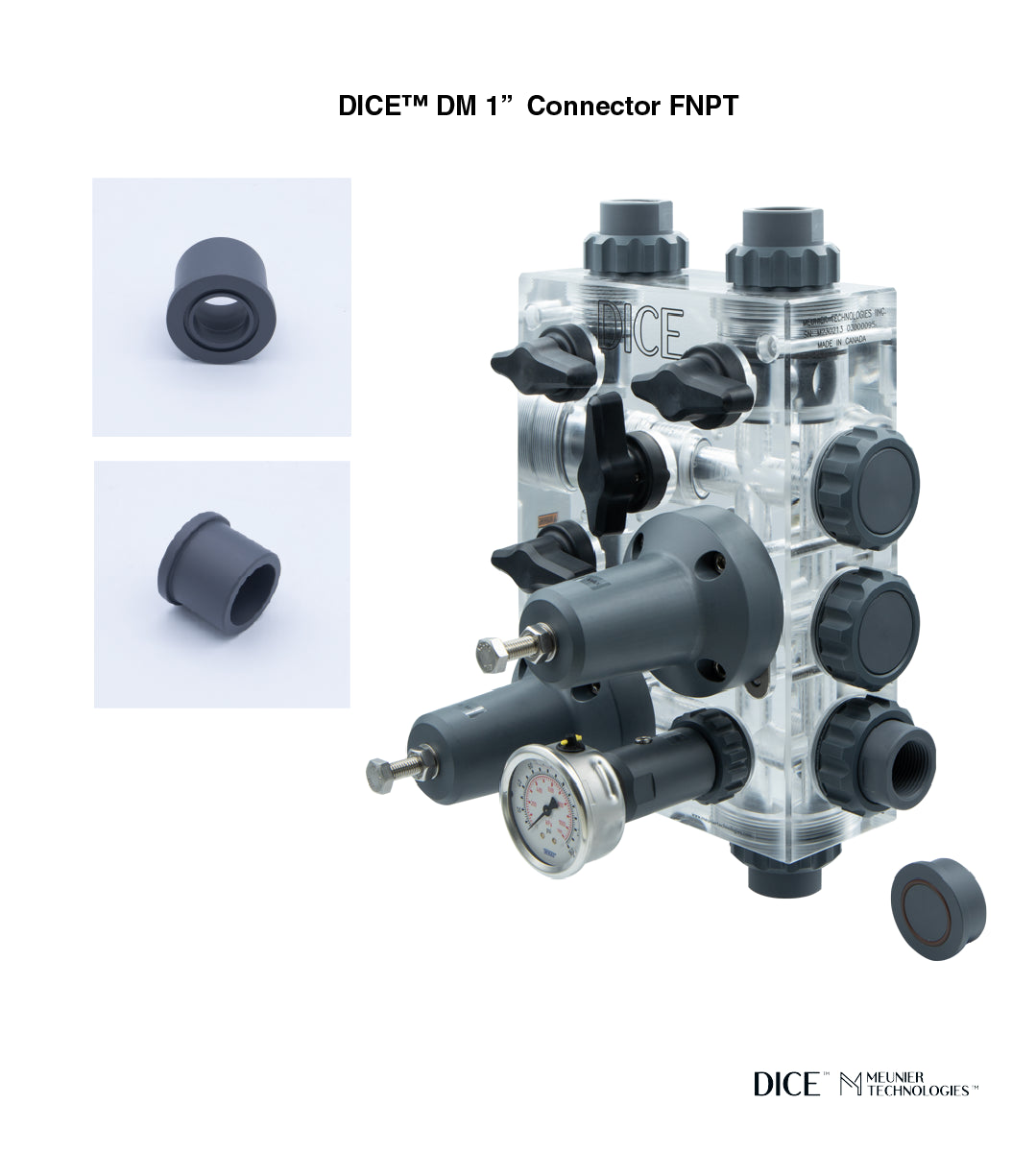

Connexion ports

  • Up to 9 components can be plugged into the DICE module.

To download

DICE DS/DM Model Number and Connectors Options

DICE DS/DM Brochure

DICE DS/DM P&ID

LMI Chemical Resistance Guide

Cole Palmer Chemical Resistance Charts


Upon request

DICE Equipment Specifications Model Sheet for Projects

DICE DM Drawings

DICE IOM (Installation, Operation and Maintenance Manual)

How to Install the DICE™ Dosing Modules DS and DM

How to Install a Pulsation Dampener on a DICE™ Module

How to Lock the Ball Valves on the DICE™ Dosing Modules DS or DM

How to Replace the Diaphragms on the DICE™ Dosing Modules

Lead time

  • 48h urgent request;
  • 3-4 weeks standard lead time

Shipping

Meunier Technologies's carrier

  • 1-3 days for urgent requests
  • 1 week standard shipping

Your own carrier

  • Depends on your terms

Packaging

Package in a single 13’’ X 11’’ X 11’’ cardboard box.

Integrated components

  • Inlet/outlet ball valves
  • Calibration column ball valve
  • Drainage ball valve
  • Auxiliary ports:
    Pulsation dampeners/washing port/dilution water/secondary pumps
  • Adjustable back pressure valve
  • Adjustable pressure relief valve
  • Pressure gauge with isolator
    Bleed valve
  • LMI Ferrule kit FK21 (with DICE DM 1/2'' only)

FAT Test

  • Rigourously tested per Meunier Technologies Inc. FAT test protocol.

Shipped fully assembled

For both suction lift and flooded suction applications

Size & flow

1/2''

  • ≤ 60LPH (16GPH) Simplex
  • ≤ 30LPH (8GPH) Duplex

1''

  • ≤ 1000 LPH (265 GPH) Simplex
  • ≤ 500 LPH (132 GPH) Duplex

Pressure range

0-150 PSI

0-250 PSI

Material options

  • ACRYLIC, PVC, FKM/VITON
  • ACRYLIC, PVC, EPDM
  • PVDF, PVDF, FKM/VITON
  • PVDF, PVDF, EPDM

    CPVC and NON-PVC are also available upon request.

Connexion ports

  • Up to 9 components can be plugged into the DICE module.

To download

DICE DS/DM Model Number and Connectors Options

DICE DS/DM Brochure

DICE DS/DM P&ID

LMI Chemical Resistance Guide

Cole Palmer Chemical Resistance Charts


Upon request

DICE Equipment Specifications Model Sheet for Projects

DICE DM Drawings

DICE IOM (Installation, Operation and Maintenance Manual)

How to Install the DICE™ Dosing Modules DS and DM

How to Install a Pulsation Dampener on a DICE™ Module

How to Lock the Ball Valves on the DICE™ Dosing Modules DS or DM

How to Replace the Diaphragms on the DICE™ Dosing Modules

Lead time

  • 48h urgent request;
  • 3-4 weeks standard lead time

Shipping

Meunier Technologies's carrier

  • 1-3 days for urgent requests
  • 1 week standard shipping

Your own carrier

  • Depends on your terms

Packaging

Package in a single 13’’ X 11’’ X 11’’ cardboard box.

Need help? Our team will be happy to assist.

Contact us

*Suggestions based on chemical compatibility should only serve as guidelines, they are suggestions based on third party chemical compatibility charts. And do not consider the chemical concentration. Refer to Meunier Technologies Inc. T&Cs for further details.

If other chemical is selected, the pricing will be based on the standard materials (Acrylic - PVC - Viton). Once the order is process, our team will suggest you the best material for your application and if needed, adjust your order and pricing based on the new configuration.
