Integrated components

Inlet/outlet ball valves

Calibration column

Drainage ball valve

Auxiliary ports:
Pulsation dampeners/washing port/dilution water/secondary pumps

Adjustable back pressure valve

Adjustable pressure relief valve

Pressure gauge with isolator
Bleed valve

FAT Test

• Rigourously tested per Meunier Technologies Inc. FAT test protocol.
• Consisting of operating the system at a maximum Pump or DICE pressure, inspecting for leaks and performing a 24hr hydrostatic test.

Specific hydrostatic test can be performed if required (additional charge may apply).

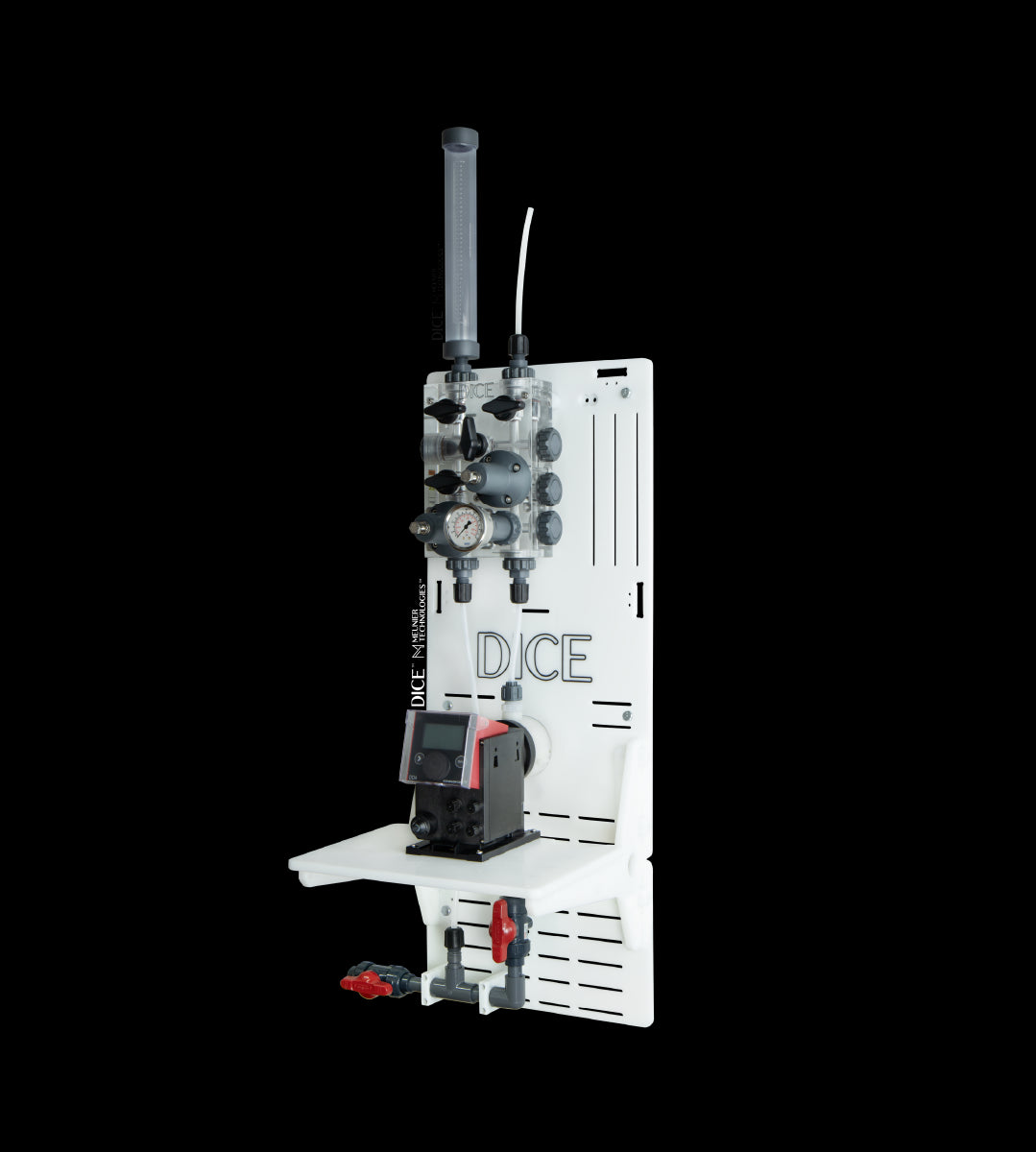

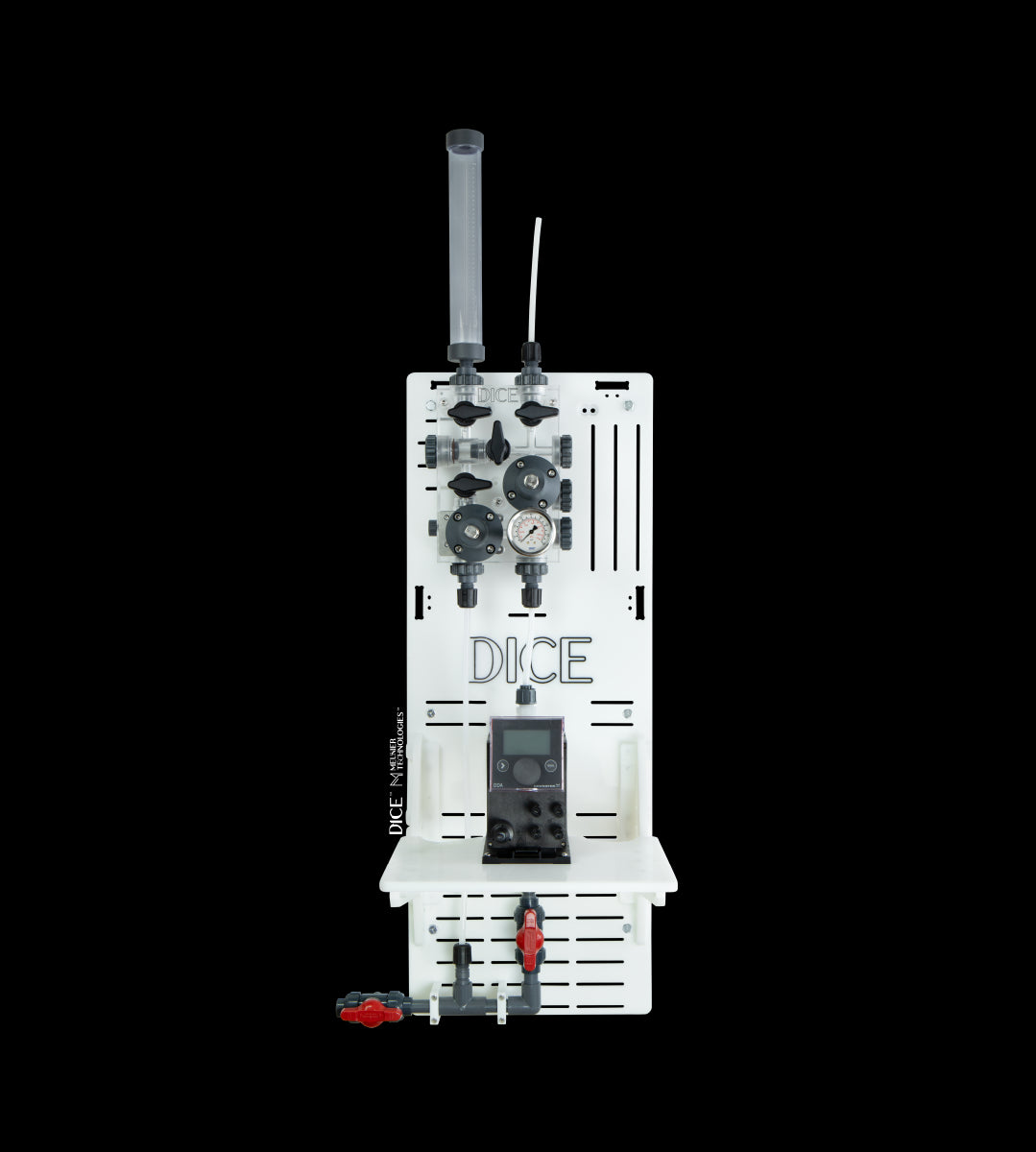

DICE Wall Mount Panel with Shelf

Suction manifold

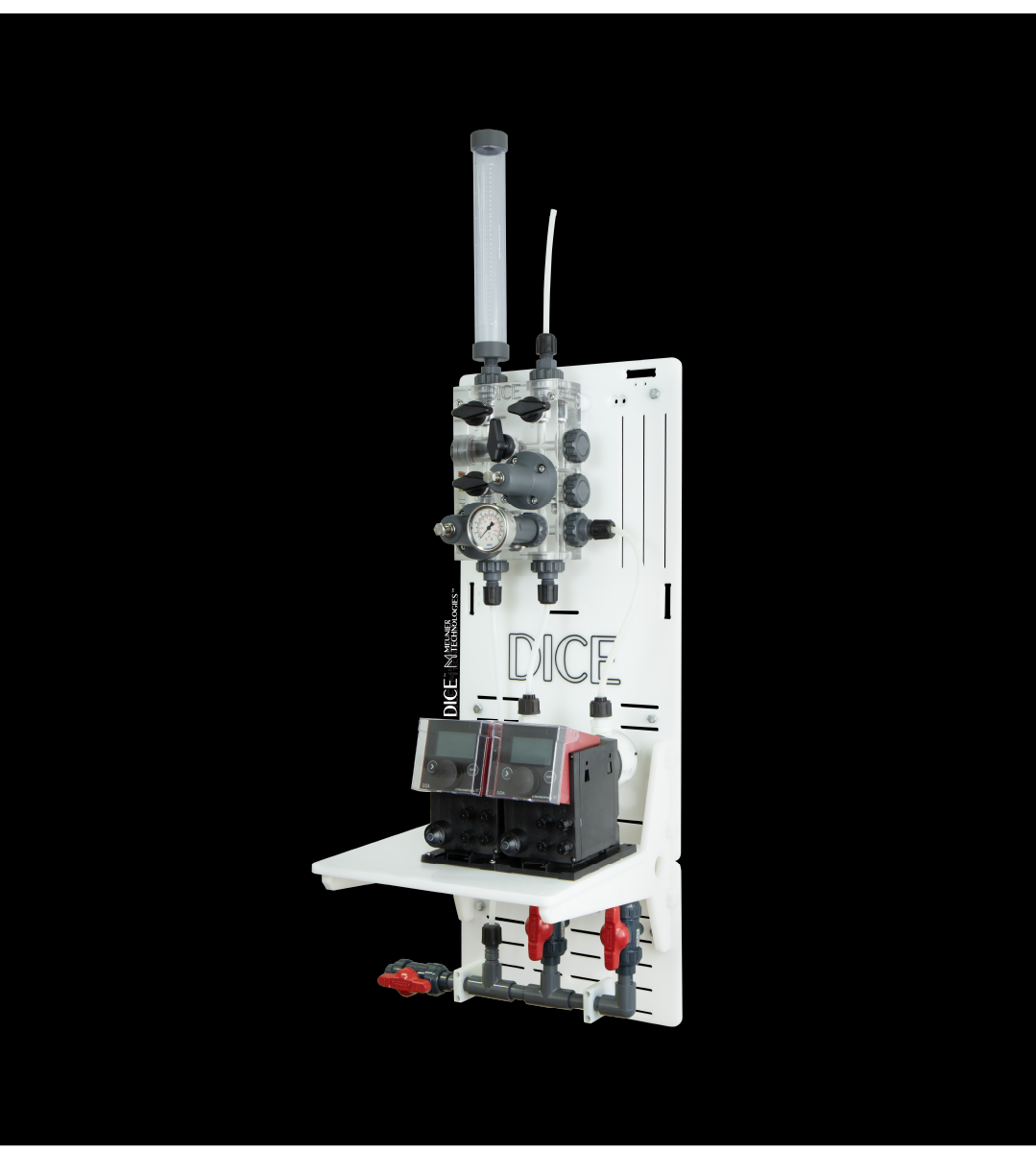

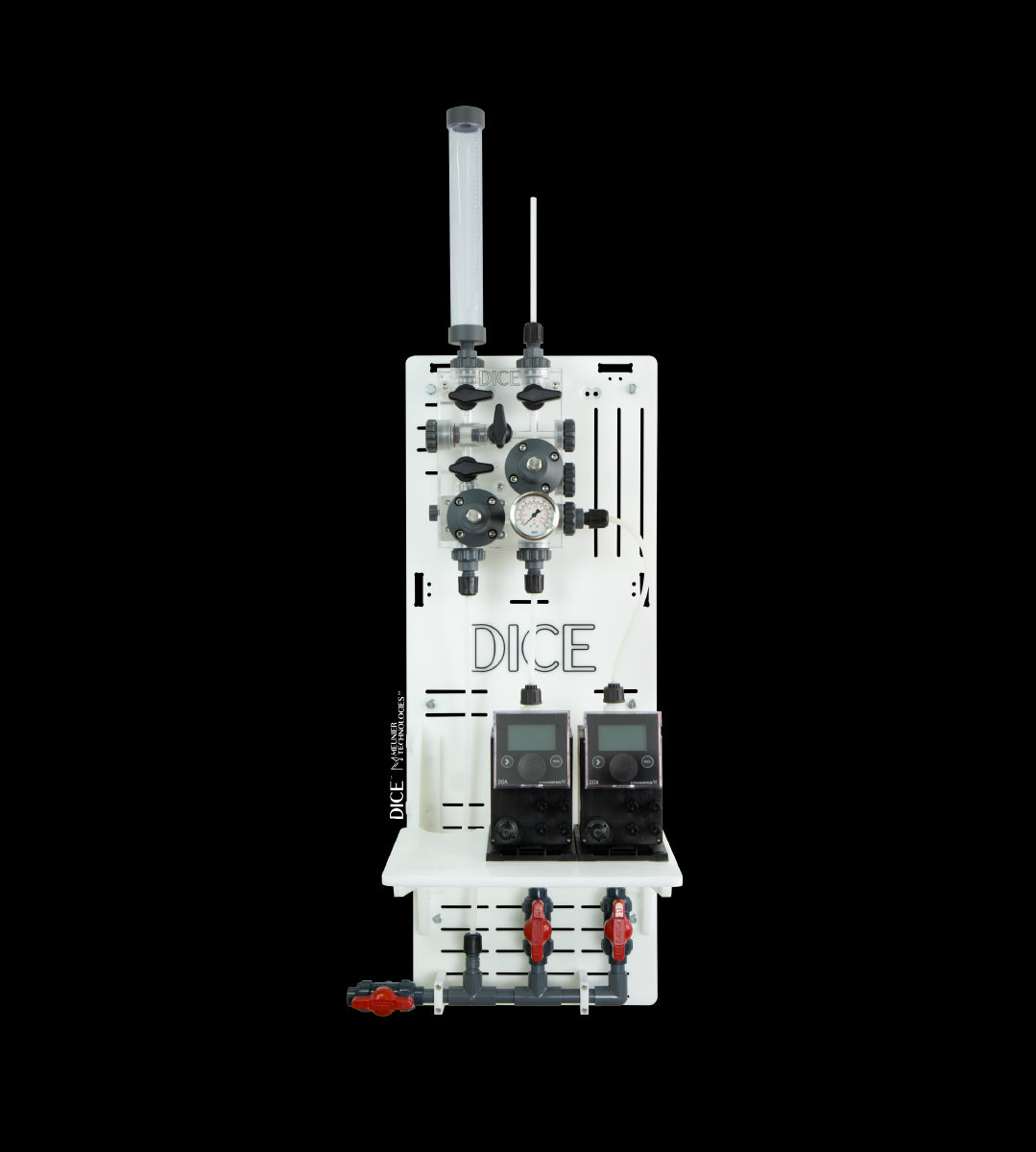

Simplex/Duplex configurations (Grundfos Pumps)

Dosing pump

Grundfos DDA model AR

• The pump head and gasket materials are in accordance with the selected DICE™ system materials
• Refer to the pump and calibration column for the complete part number.
• All pumps are equipped with ceramic ball check
• The pump inlet and outlet are preconnected using the selected tubing
• The pump is mounted on a Grundfos base plate
• 1.5m electrical power supply cord
• No pump calibration is performed (available as an option)
• No foot valve included; Refer to DICE parts to see our standard DICE™ foot valves available
• No control cable included (option available on a RFQ basis)

Calibration Cylinder

• The Calibration column material is in accordance with the selected DICE™ system materials
• Refer to the pump and calibration column table for the exact calibration column volume and material

Piping/Tubing

• Tubing/piping assembly - as per drawing (Refer to the correct page base on your selection – with or without a suction manifold)
• No piping or tubing from the DICE™ injection port
• When a suction manifold is included, no piping or tubing is included from the manifold inlet isolation ball valve

Control and wiring

• No junction box (option available on a RFQ basis)
• No wiring (1.5m electrical power supply cord included directly on the pump)

Assembly

• The DICE™ System come pre assembled as per the selected DICETM module, DICE™ panel and piping/tubing layout.
• The DICE™ System materials are supplied in accordance to the selected materials for the DICE™ block, wetted parts, seals and tubing.

For both suction lift and flooded suction applications

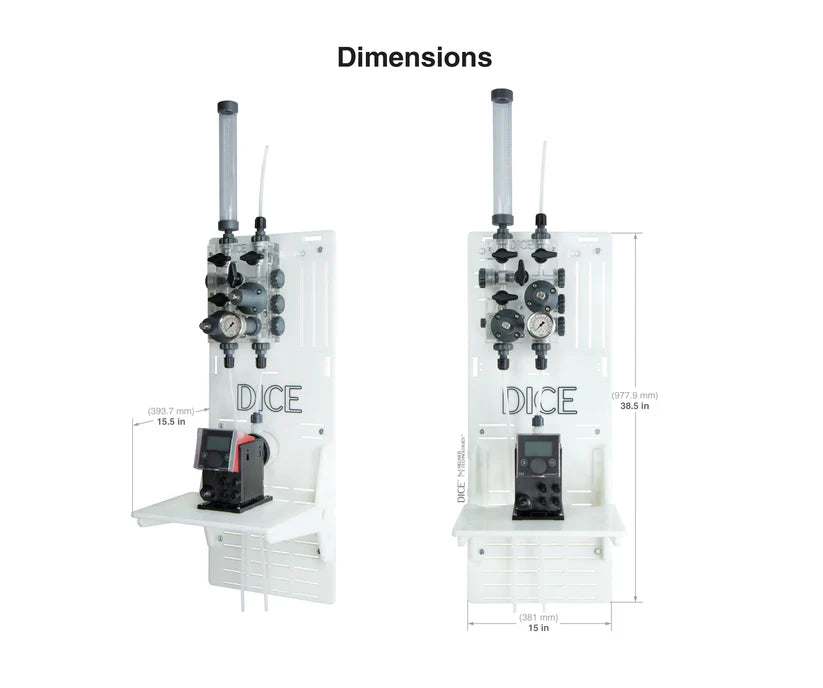

Size

• 1/2''

Pressure range

• 0-150 PSI

Flow

• ≤ 60LPH (16GPH) Simplex
• ≤ 30LPH (8GPH) Duplex

Material options

• ACRYLIC, PVC, FKM/VITON
• ACRYLIC, PVC, EPDM
• PVDF, PVDF, FKM/VITON
• PVDF, PVDF, EPDM

  CPVC is also available upon request.

To download

DICE DS/DM Brochure

DICE System Brochure

DICE DS/DM P&ID

LMI Chemical Resistance Guide

Cole Palmer Chemical Resistance Charts

Upon request

DICE Equipment Specifications Model Sheet for Projects

DICE DM Drawings

DICE IOM (Installation, Operation and Maintenance Manual)

How to

Assemble the DICE™ Panel Wall Mount Standard Shelf

Lead time

• 3-4 weeks standard lead time

Shipping

Meunier Technologies's carrier

• 1 week standard shipping

Your own carrier

• Depends on your terms

Packaging

Will be package in a 16’’ X 16’’ X 48’’ cardboard box.
