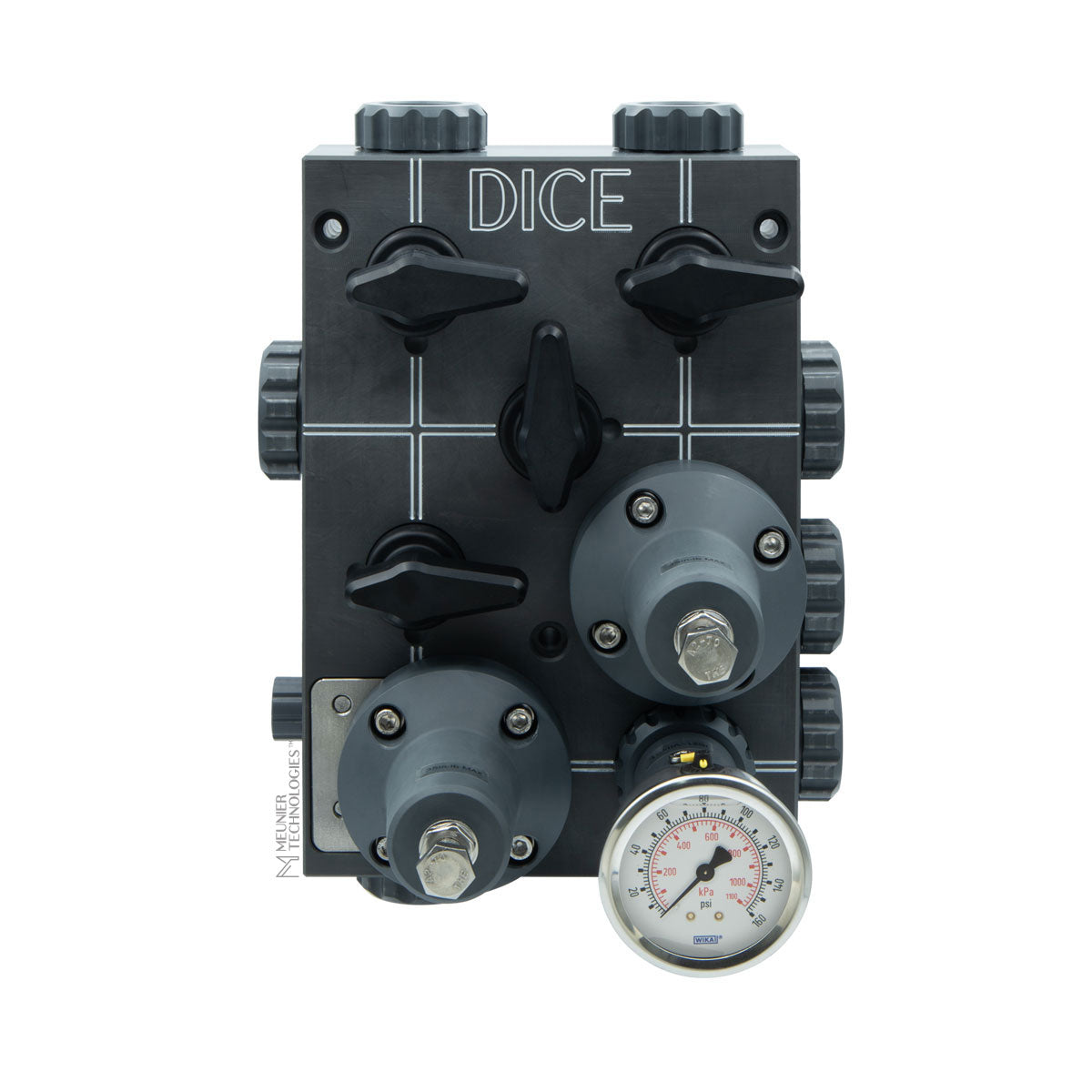

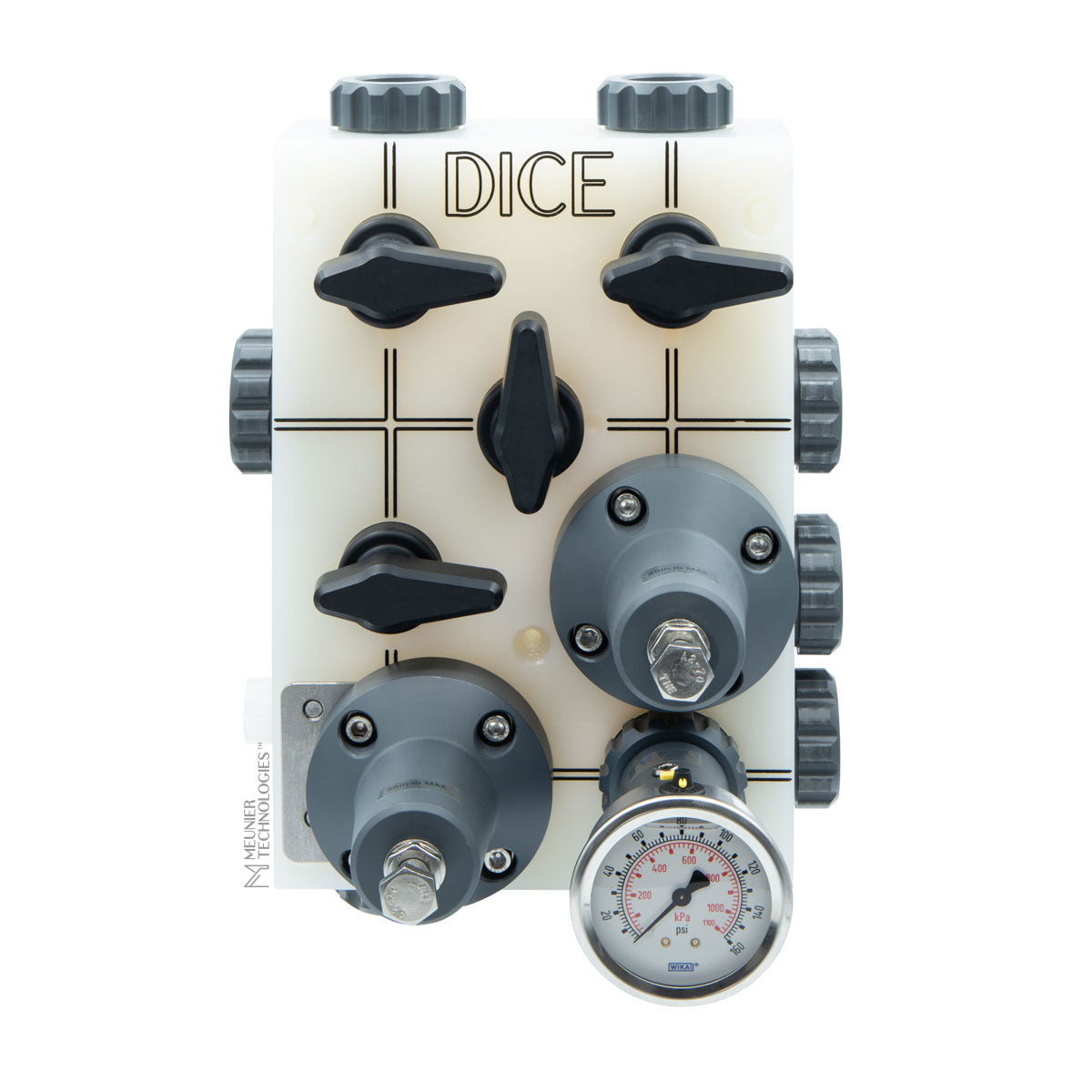

Integrated components

• Inlet/outlet ball valves
• Calibration column ball valve
• Drainage ball valve
• Auxiliary ports:
  Pulsation dampeners/washing port/dilution water/secondary pumps

• Adjustable back pressure valve

• Adjustable pressure relief valve

• Pressure gauge with isolator
  Bleed valve
• LMI Ferrule kit FK21 (with DICE DM 1/2'' only)


FAT Test

• Rigourously tested per Meunier Technologies Inc. FAT test protocol.

Shipped fully assembled

For both suction lift and flooded suction applications

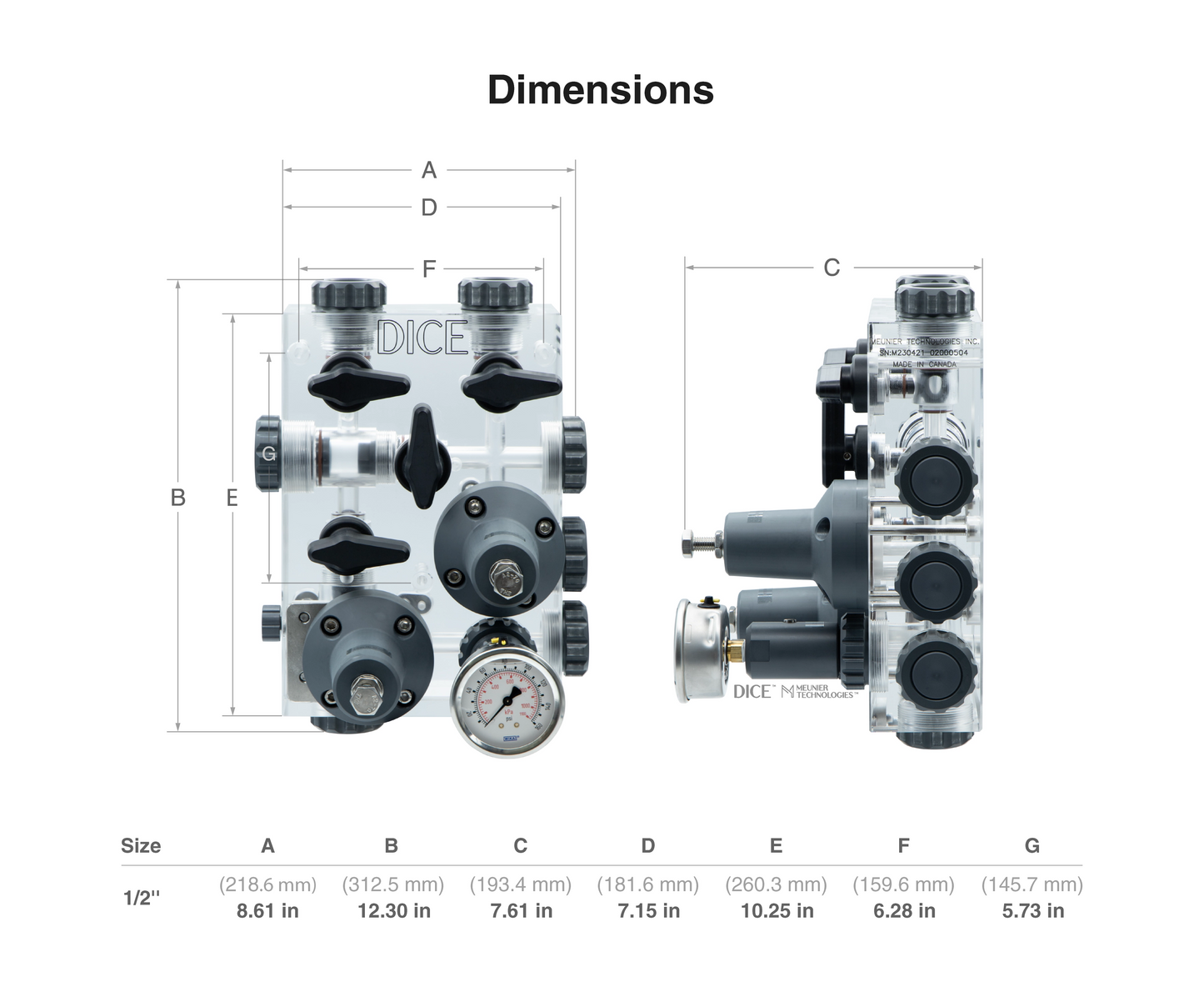

Size & flow

1/2''

• ≤ 60LPH (16GPH) Simplex
• ≤ 30LPH (8GPH) Duplex

1''

• ≤ 1000 LPH (265 GPH) Simplex
• ≤ 500 LPH (132 GPH) Duplex

Pressure range

0-150 PSI

0-250 PSI

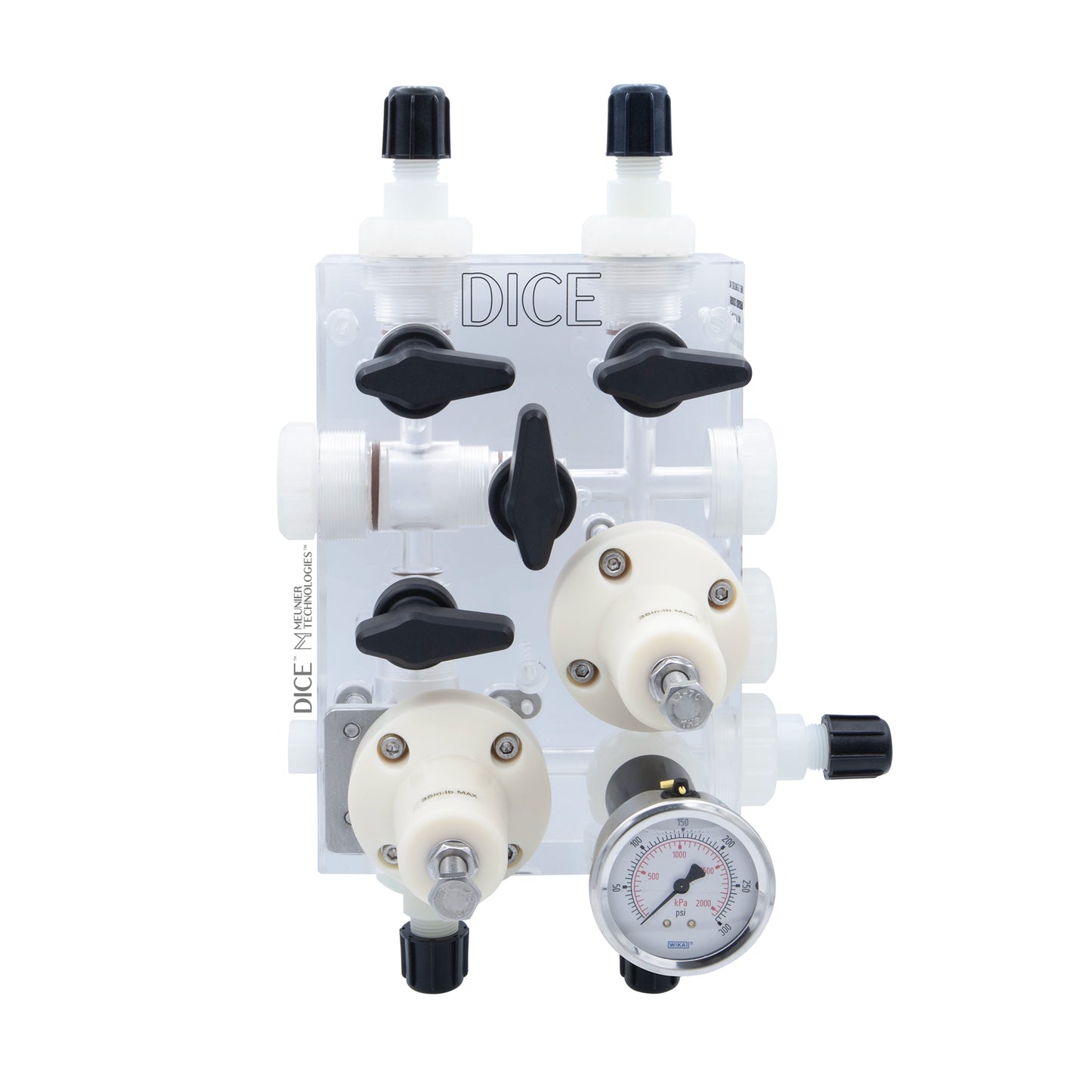

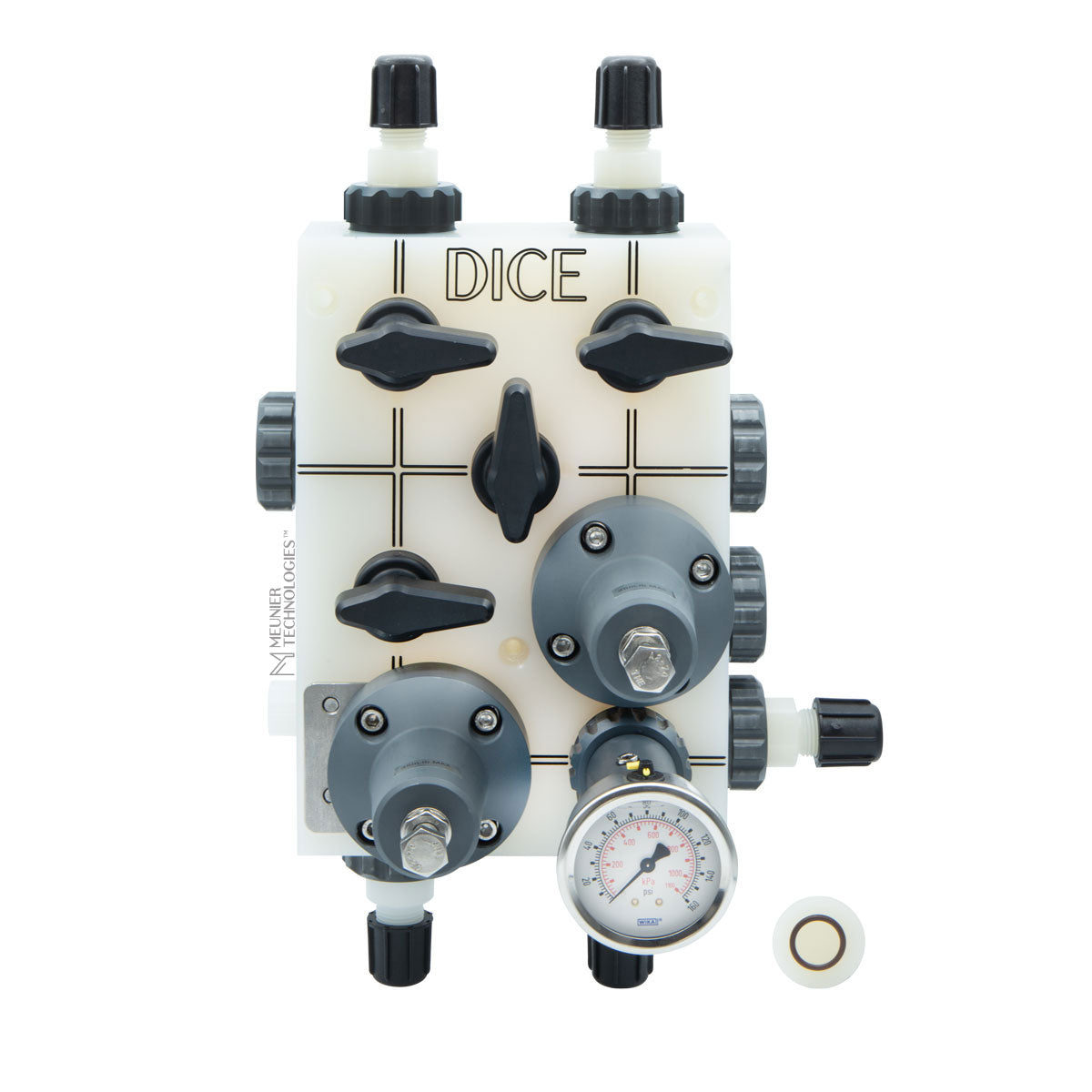

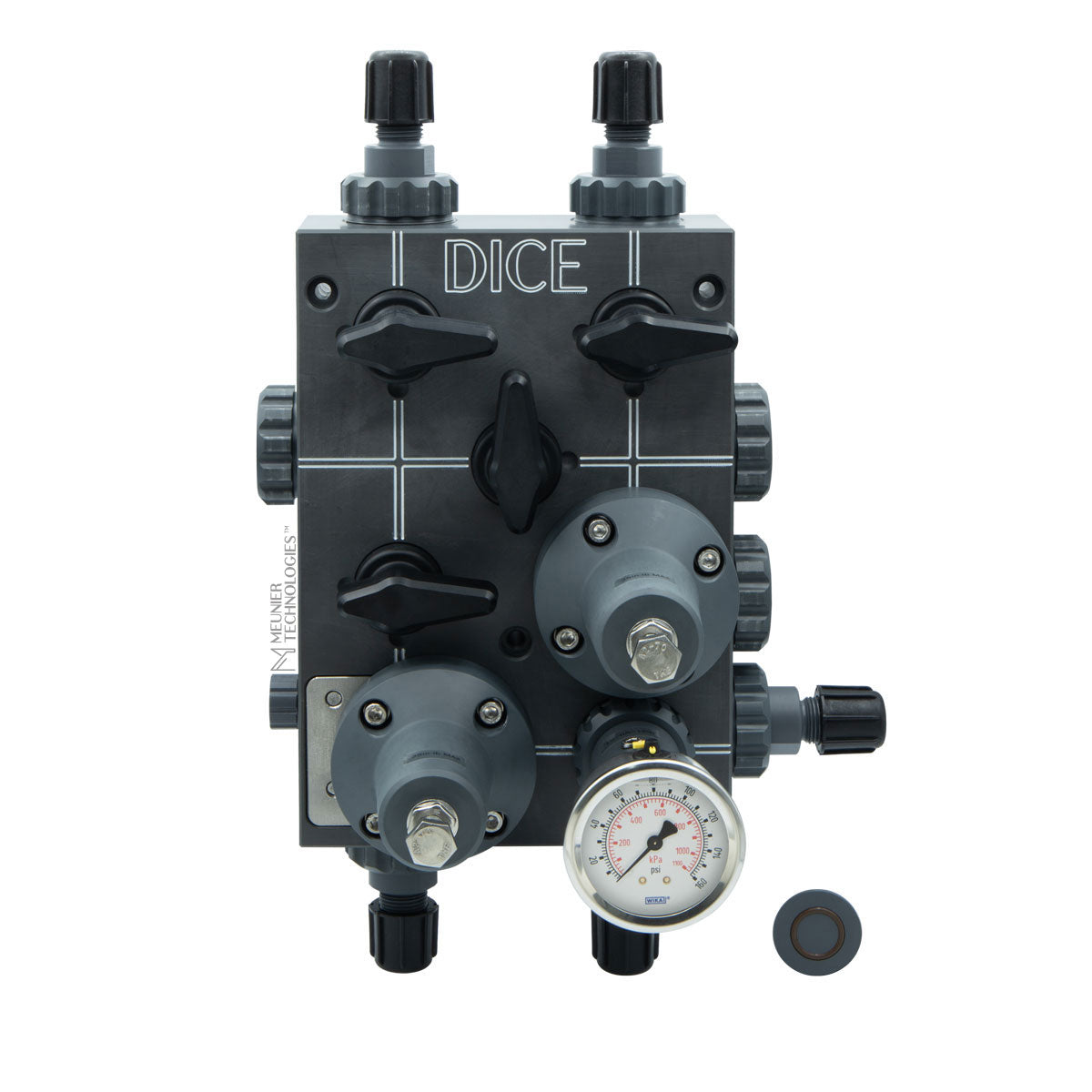

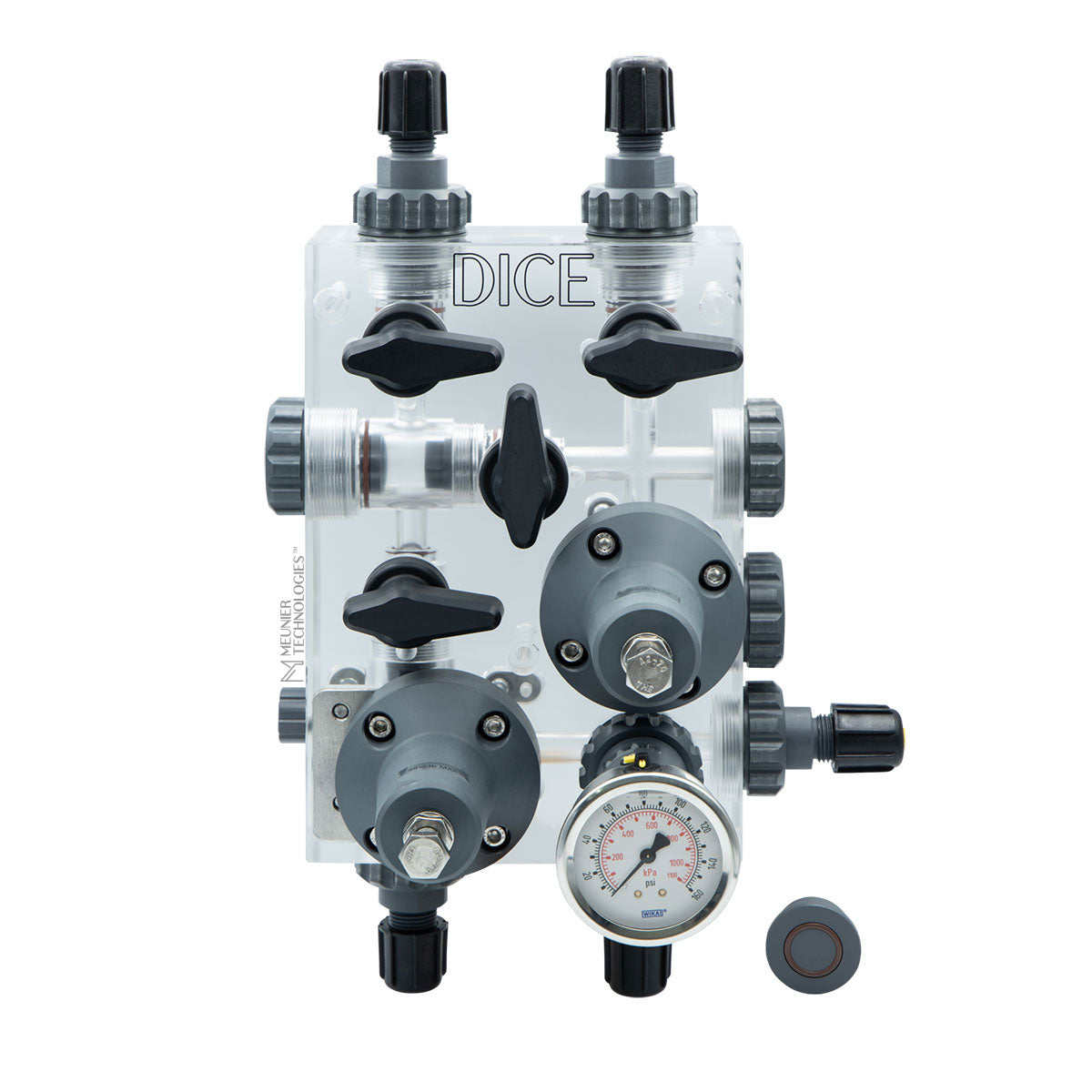

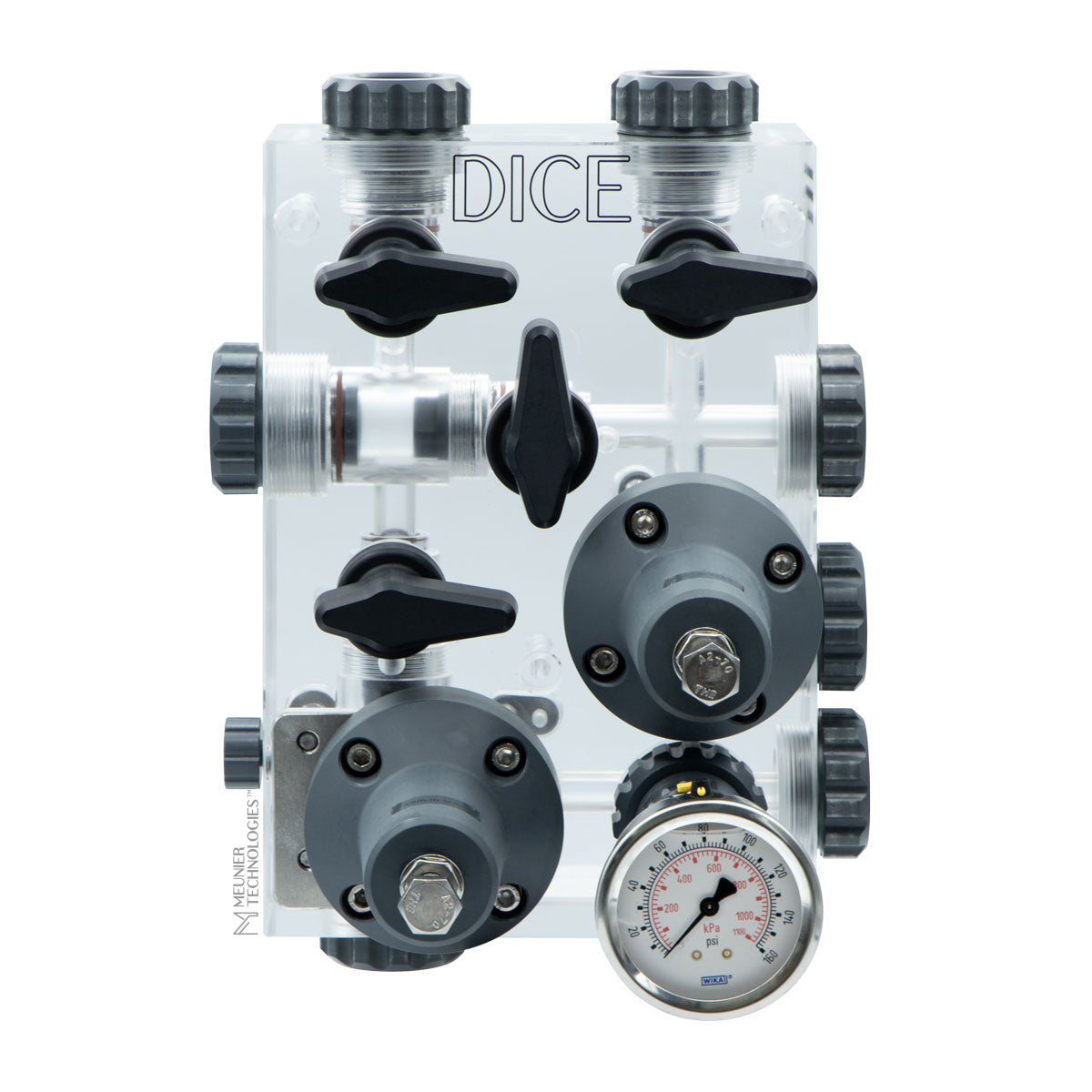

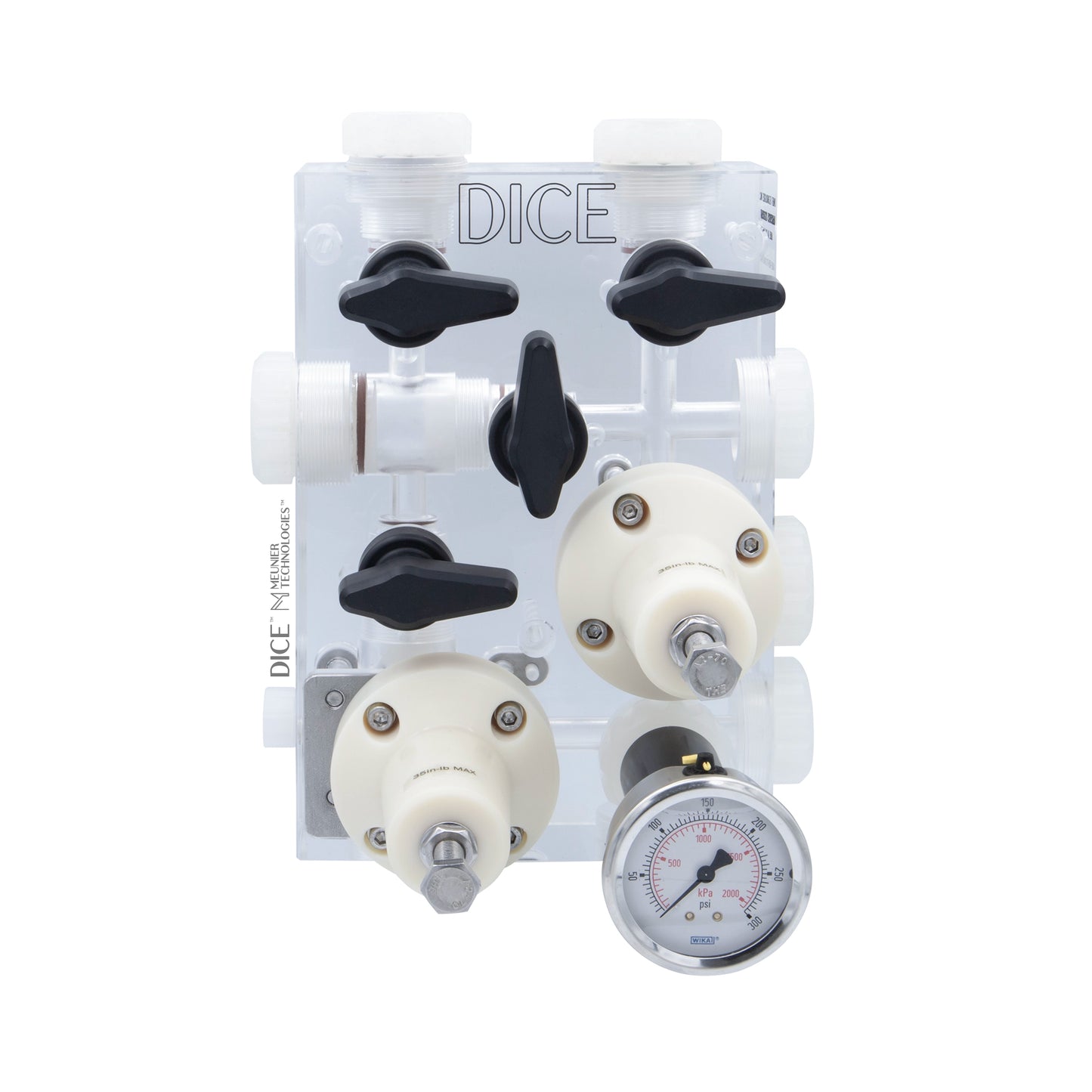

Material options

• ACRYLIC, PVC, FKM/VITON
• ACRYLIC, PVC, EPDM
• PVDF, PVDF, FKM/VITON
• PVDF, PVDF, EPDM

  CPVC and NON-PVC are also available upon request.

Connexion ports

• Up to 9 components can be plugged into the DICE module.

Chemical compatibility*

*This table should only serve as guidelines, they are suggestions based on third party chemical compatibility charts, refer to Meunier Technologies Inc. T&Cs.

To download
DICE DS/DM Model Number and Connectors Options

DICE DS/DM Brochure

DICE DS/DM P&ID

Upon request

DICE Equipment Specifications Model Sheet for Projects

DICE DM Drawings

DICE IOM (Installation, Operation and Maintenance Manual)

How to Install the DICE™ Dosing Modules DS and DM

How to Install a Pulsation Dampener on a DICE™ Module

How to Lock the Ball Valves on the DICE™ Dosing Modules DS or DM

How to Replace the Diaphragms on the DICE™ Dosing Modules

Lead time

• 48h urgent request;
• 3-4 weeks standard lead time

Shipping

Meunier Technologies's carrier

• 1-3 days for urgent requests
• 1 week standard shipping

Your own carrier

• Depends on your terms

Packaging

Package in a single 13’’ X 11’’ X 11’’ cardboard box.

Price

This price does not include any shipping cost and importation cost; including but not limited to brokerage fees, taxes and tariffs. Meunier Technologies enforces a minimum order value of 500.00 $ USD. For smaller order, please contact us or our distributors.
