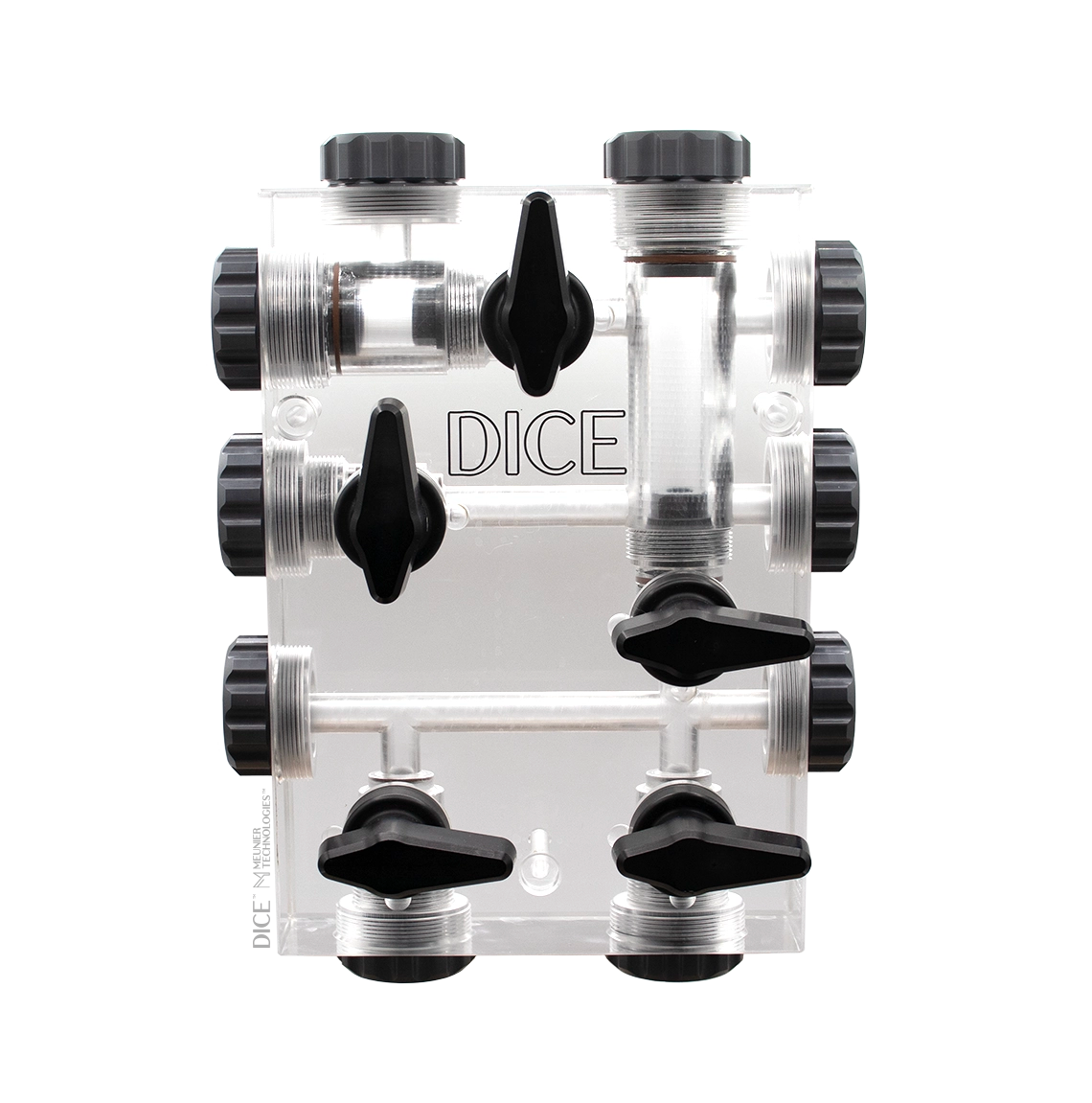

DICE™ Modules

STEP 1 | Pre-select a module based on:

Required maximum pressure — E.g.: 150 PSI
Required flow — E.g.: 30 liters/hour; 8 gallons/hour
Type of suction: Suction lift or flooded suction (difference here)

DICE™ Modules 1/2''

  • DICE™ DM 1/2″

    SUCTION LIFT & FLOODED SUCTION

    Pressure range: 0-150 PSI, 0-250 PSI

    Flow: ≤ 60 LPH (16 GPH) Simplex,
    ≤ 30 LPH (8 GPH) Duplex

    Materials: Acrylic, PVC, CPVC, PVDF

  • DICE™ DS 1/2″

    SUCTION LIFT

    Pressure range: 0-150 PSI, 0-250 PSI

    Flow: ≤ 60 LPH (16 GPH) Simplex,
    ≤ 30 LPH (8 GPH) Duplex

    Materials: Acrylic, PVC, CPVC, PVDF

  • DICE™ DM SS 1/2″

    Request info

    SUCTION LIFT & FLOODED SUCTION

    0-350 PSI
    Alloy

DICE™ Modules 1''

  • DICE™ DM 1″

    SUCTION LIFT & FLOODED SUCTION

    Pressure range: 0-150 PSI

    ≤ 1000 LPH (265 GPH) Simplex

    ≤ 500 LPH (132 GPH) Duplex

    Materials: Acrylic, PVC, CPVC, PVDF

  • DICE™ DM SS 1″

    Request info

    Coming soon

DICE™ Modules 1/4"

  • DICE™ ES 1/4″

    SUCTION LIFT

    Pressure: 0-150 PSI, 0-250 PSI

    Flow: ≤ 7.5 LPH (2 GPH)

    Materials: PVC, PVDF

Need more information?

Visit our informational website to learn more about the different DICE™ Modules or contact us if you have specific questions.

Learn moreContact us

*The flow range published should only serve as guidelines (refer to Meunier Technologies Inc. T&Cs). The maximum flow will depend on the pump type (e.g. diaphragm, peristaltic, gear, progressive cavity etc.), the chemical used and the operating pressure. Meunier Technologies Inc. should be contacted when selecting a DICE module to be operating above or close to its maximum published flow.
