STEP 2 | Configurate your DICE™ Module based on:
- Required pressure — E.g.: 150 PSI
- Chemical used in the process — Determines the Block, Wetted Parts & Seals Materials
- Pump(s) and accessories — Determines your connectors

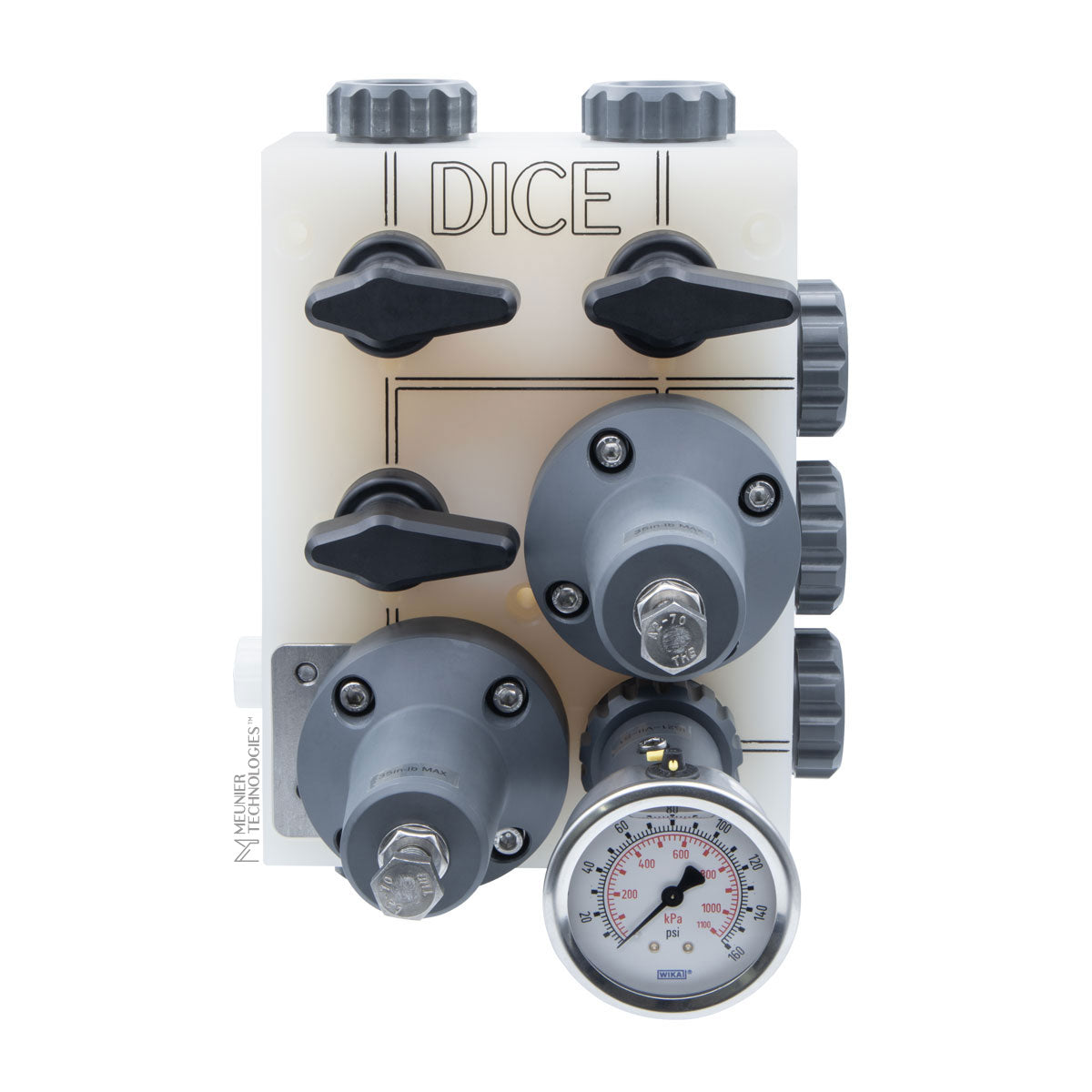

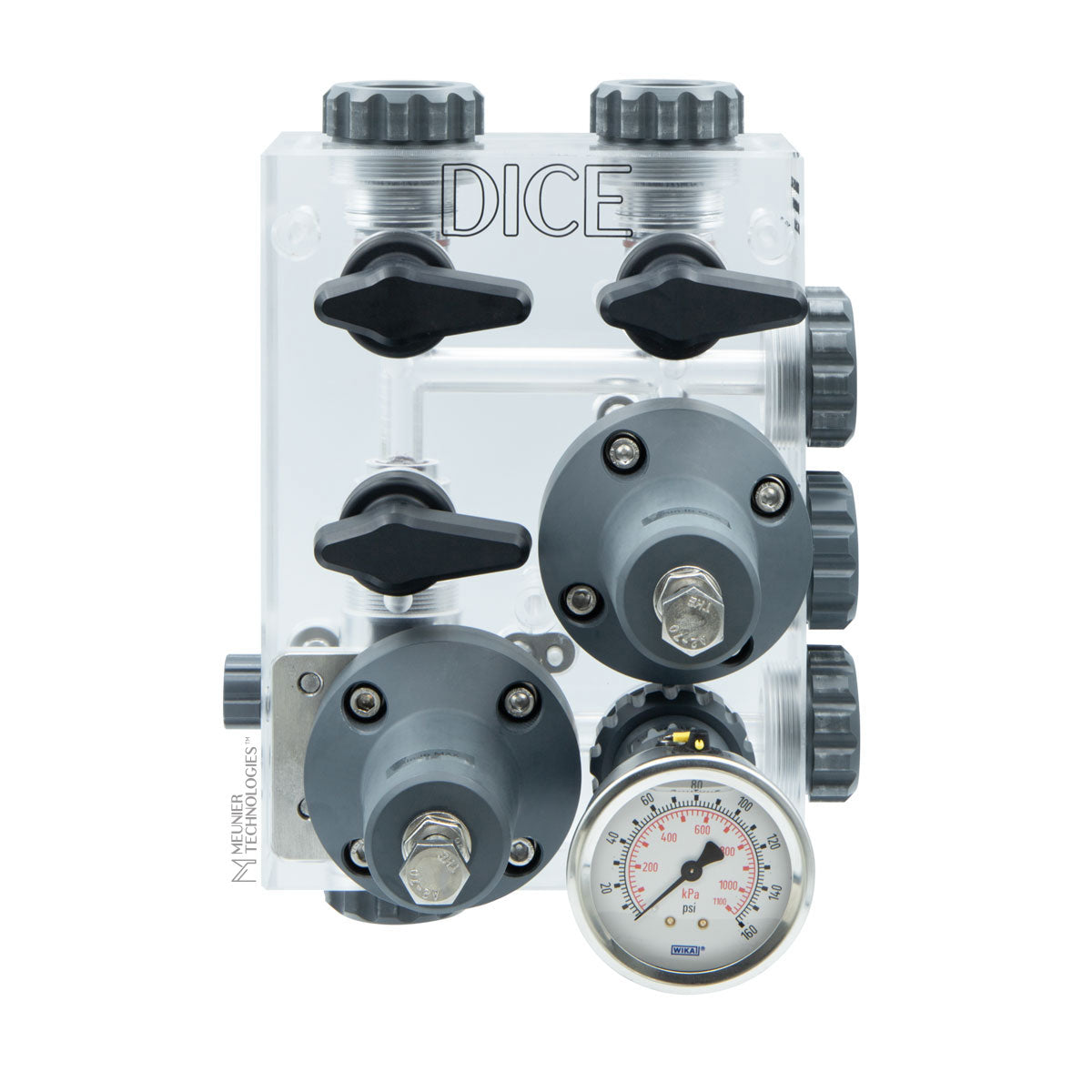

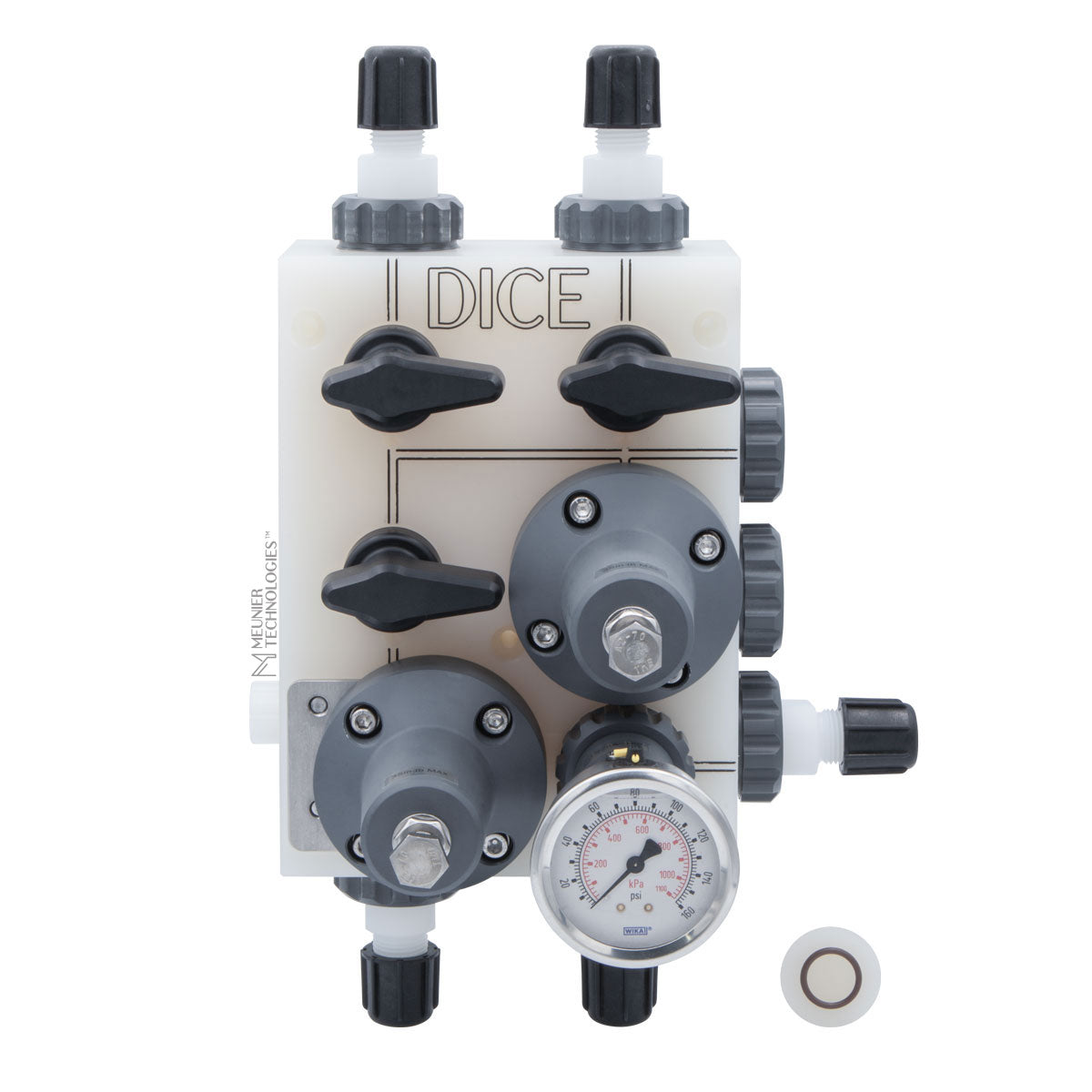

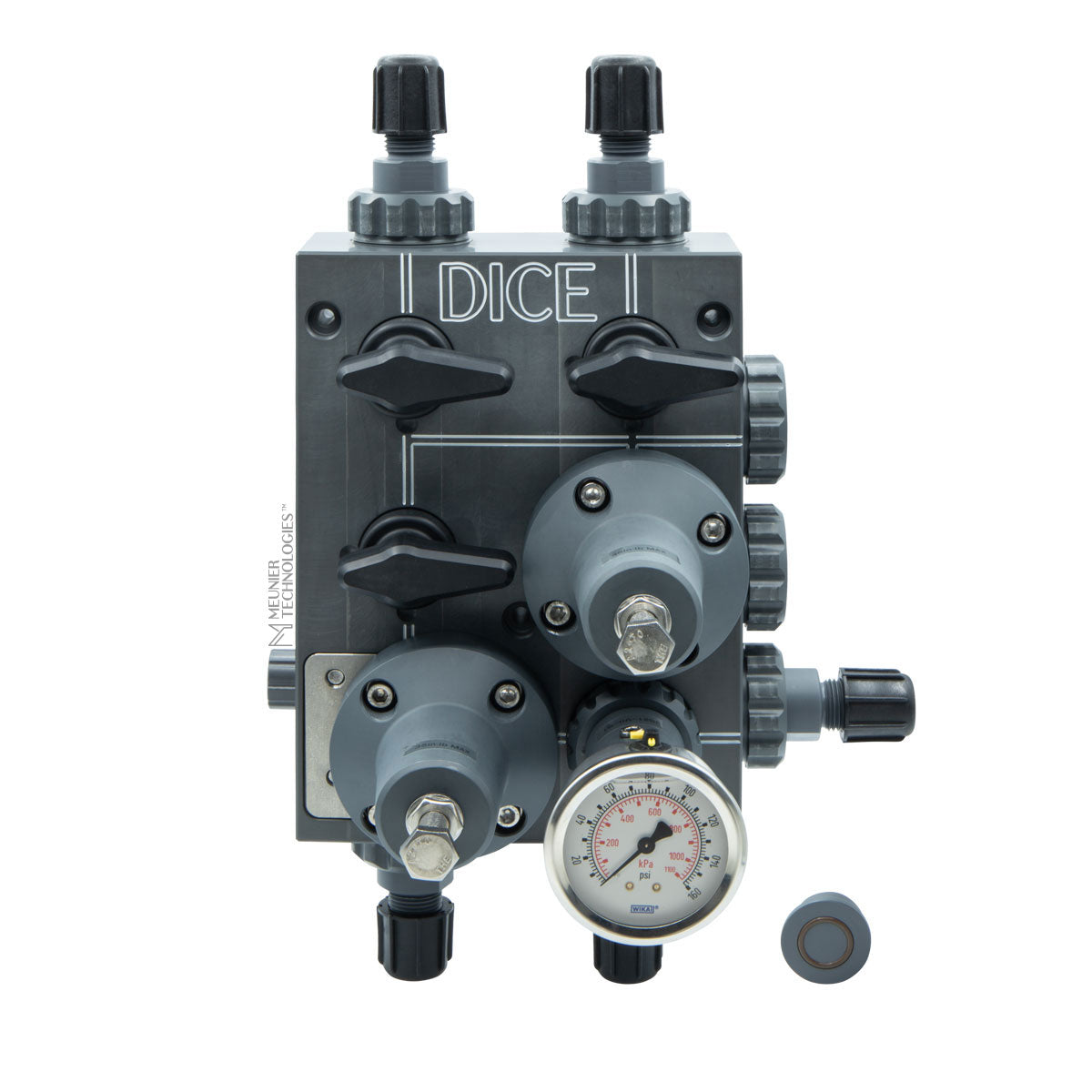

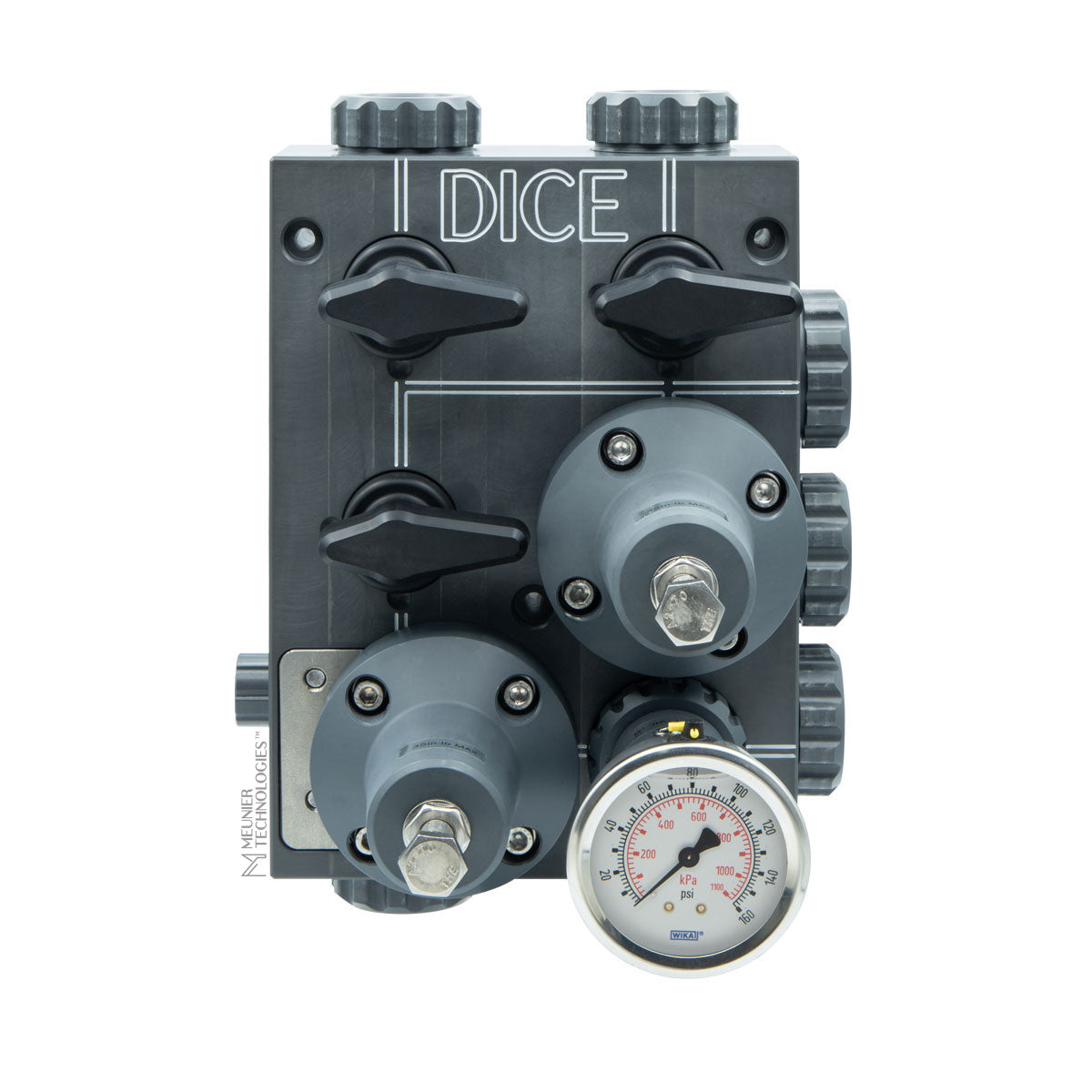

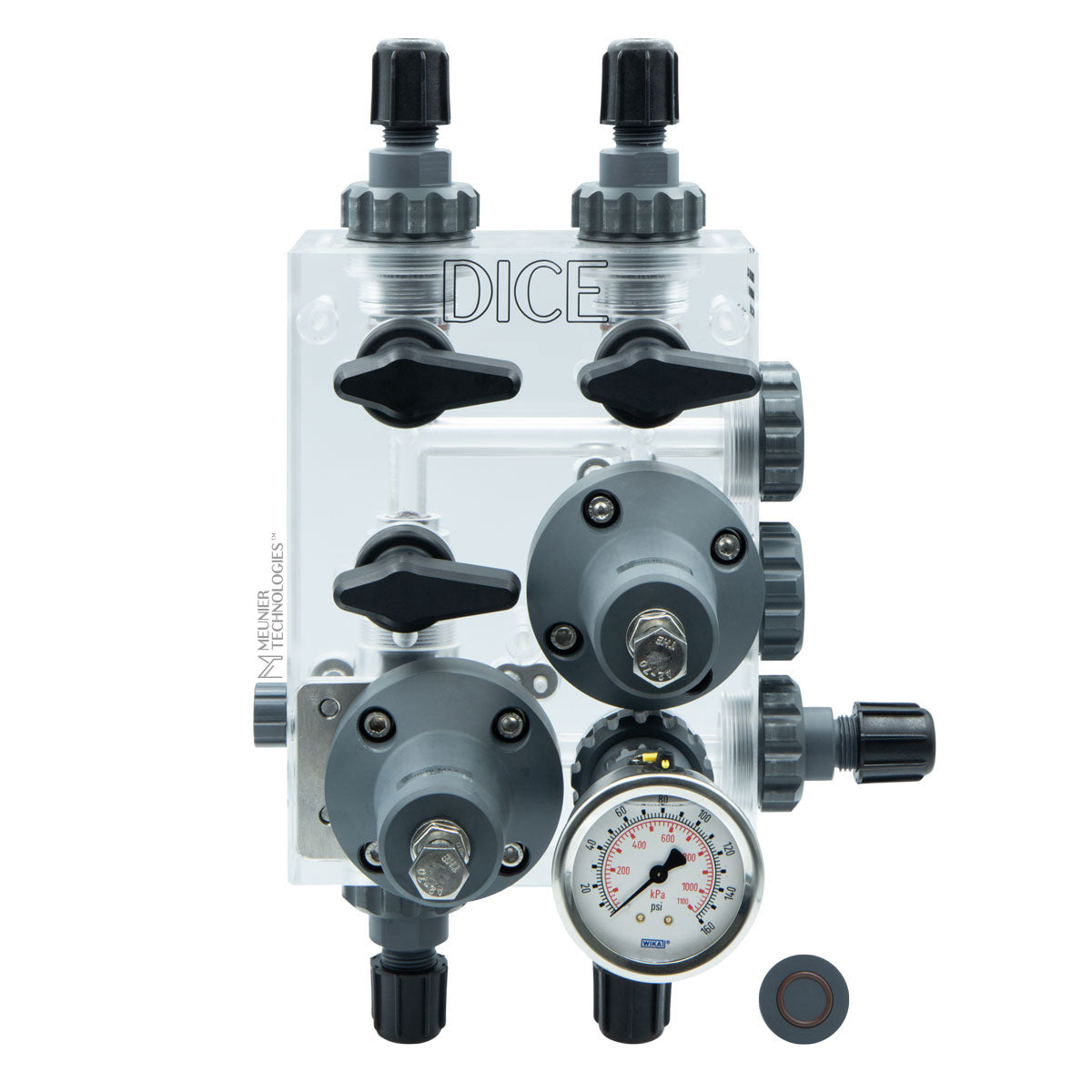

DICE™ Module DS 1/2"
DICE™ Module DS 1/2"
SKU:DIS21-MVII-1111144Z-OEC
List Price
Note: Refer to delivery section regarding taxes, tariffs, importation duties and minimum order value.
Couldn't load pickup availability
Images are for reference only. They do not represent all possible configurations and materials.
Share
Contact
Have a question? Feel free to write to us through this form and we will get back to you shortly. You may also contact us by phone: +1-450-413-1311.
Integrated components
- Inlet/outlet ball valves
- Calibration column ball valve
- Drainage ball valve
- Auxiliary ports:
Pulsation dampeners/washing port/dilution water/secondary pumps - Adjustable back pressure valve
- Adjustable pressure relief valve
- Pressure gauge with isolator
Bleed valve
FAT Test
- Rigourously tested per Meunier Technologies Inc. FAT test protocol.
Shipped fully assembled
For suction lift applications

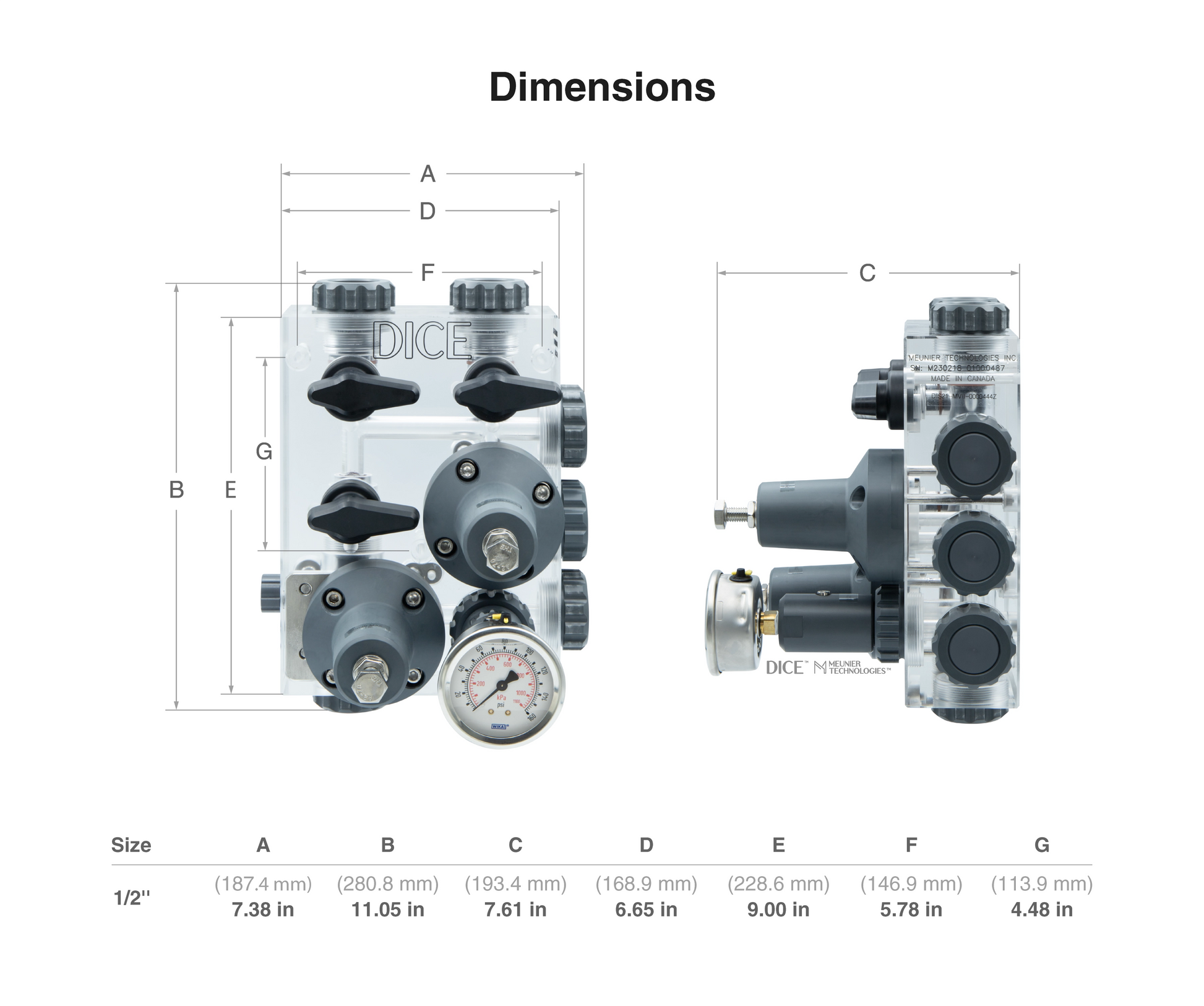

Size & flow
1/2''
- ≤ 60LPH (16GPH) Simplex
- ≤ 30LPH (8GPH) Duplex
Pressure range
0-150 PSI
0-250 PSI
Material options
- ACRYLIC, PVC, FKM/VITON
- ACRYLIC, PVC, EPDM
- PVDF, PVDF, FKM/VITON
- PVDF, PVDF, EPDM
CPVC and NON-PVC are also available upon request.
Connexion ports
- Up to 8 components can be plugged into the DICE™ module.
*This table should only serve as guidelines, they are suggestions based on third party chemical compatibility charts, refer to Meunier Technologies Inc. T&Cs.
To download
DICE™ DS/DM Model Number and Connectors Options
Upon request
How to Install the DICE™ Dosing Modules DS and DM
How to Install a Pulsation Dampener on a DICE™ Module
How to Lock the Ball Valves on the DICE™ Dosing Modules DS or DM
Lead time
- 48h urgent request;
- 3-4 weeks standard lead time
Shipping
Meunier Technologies's carrier
- 1-3 days for urgent requests
- 1 week standard shipping
Your own carrier
- Depends on your terms
Packaging
Package in a single 13’’ X 11’’ X 11’’ cardboard box.
Price
This price does not include any shipping cost and importation cost; including but not limited to brokerage fees, taxes and tariffs. Meunier Technologies enforces a minimum order value of 500.00 $ USD. For smaller order, please contact us or our distributors.
Integrated components
- Inlet/outlet ball valves
- Calibration column ball valve
- Drainage ball valve
- Auxiliary ports:
Pulsation dampeners/washing port/dilution water/secondary pumps - Adjustable back pressure valve
- Adjustable pressure relief valve
- Pressure gauge with isolator
Bleed valve
FAT Test
- Rigourously tested per Meunier Technologies Inc. FAT test protocol.
Shipped fully assembled
For suction lift applications
Size & flow
1/2''
- ≤ 60LPH (16GPH) Simplex
- ≤ 30LPH (8GPH) Duplex
Pressure range
0-150 PSI
0-250 PSI
Material options
- ACRYLIC, PVC, FKM/VITON
- ACRYLIC, PVC, EPDM
- PVDF, PVDF, FKM/VITON
- PVDF, PVDF, EPDM
CPVC and NON-PVC are also available upon request.
Connexion ports
- Up to 8 components can be plugged into the DICE™ module.
*This table should only serve as guidelines, they are suggestions based on third party chemical compatibility charts, refer to Meunier Technologies Inc. T&Cs.
Lead time
- 48h urgent request;
- 3-4 weeks standard lead time
Shipping
Meunier Technologies's carrier
- 1-3 days for urgent requests
- 1 week standard shipping
Your own carrier
- Depends on your terms
Packaging
Package in a single 13’’ X 11’’ X 11’’ cardboard box.
Price
This price does not include any shipping cost and importation cost; including but not limited to brokerage fees, taxes and tariffs. Meunier Technologies enforces a minimum order value of 500.00 $ USD. For smaller order, please contact us or our distributors.
